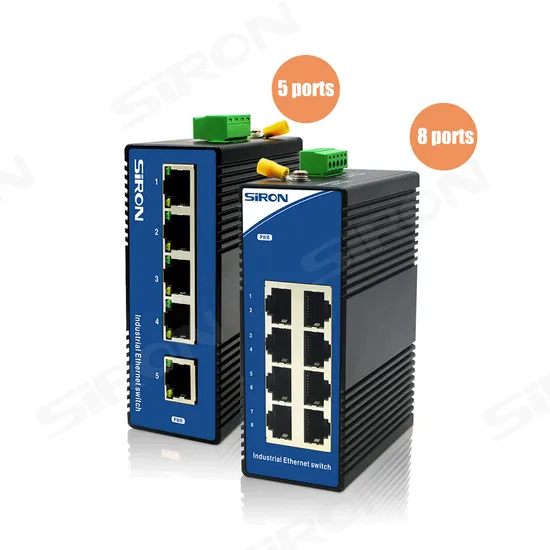

Siron T380-2-C Series 5/8-Port Industrial-Grade DIN-Rail Unmanaged Poe Ethernet Network Switch

Product Description

Features
* Provides 4 10/100Mbps down electrical port to 1 10/100Mbps up electrical port, can expand IEEE802.3af(15.4W)/at(30W); * Support wide temperature design -40ºC ~ 85ºC to meet harsh environment application requirements; * Support dual power supply redundancy backup, anti-protection, EMC industrial level 4 electromagnetic anti-interference; * Support IP40 protection rating, fanless design aluminum alloy metal housing DIN rail mounting wall mount.
Certifications

Model	T380-2-C
Net interface	100M fiber optic
Rj45 port	10/100BaseT(X) Automatic detection; Full/half duplex MDI/MDI-X adaptive
Port description	5x10/100Mbps RJ45 port
Port number	5 port
NMS/non-NMS	Unmanaged Switch
Network protocol	IEEE802.3-CSMA/CD; IEEE802.3i-10Base-T; IEEE802.3u-100Base-TX/FX; IEEE802.3x- traffic control;
PoE (optional)	PoE standard: Meets IEEE802.3af /IEEE802.3at Single port Max: 15.4W (IEEE 802.3af) Single port Max :30W(IEEE 802.3at) PoE compatibility :IEEE 802.3af/at adaptive Output voltage of the PoE port: DC 48-52V PoE power supply core :(af/at):1/2+, 3/6-

Specifications

Model		T380-2-C
working voltage		DC12-52V( non POE) DC48-52V(POE)
Input terminal		Phoenix terminal
Backplane bandwidth		1Gbps
Switch properties	Application level	Two layers
	Packet forwarding rate of the whole system	0.744Mpps
	MAC table	1K
	Packet buffer	448K
	Delay time	<3μs
	Switching mode	store-and-forward
	Overall power consumption	<3W( non POE)
Mechanical characteristic	Shell	IP40 rating, metal housing
	Install	DIN clamp rail, wall-mounted
	Heat dissipation mode	Natural cooling, no fan
	Weight	0.36Kg
Power indicator light		PWR
Interface indicator		Electrical port (Link/ACT)
Operating temperature		-40~85°C(-40~185°F)
Storage temperature		-40~85°C(-40~185°F)
Relative humidity		5%~95%(no condensation)
Mean time between failures		300,000 hours
