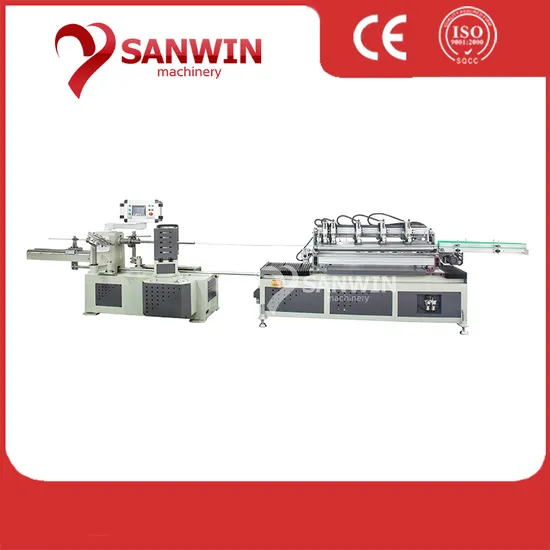

Spiral Kraft Cardboard Paper Tube Core Making Cutting Winding Machine

US$5,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
30
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
3-16
Reelpipe Speed
12 - 18m/minute
Wall Thickness of Paper Tube
5 - 10mm
Certification
CE
Condition
New
Winding Type
Three Head Two Belts
Cutting System
Numerical and Multi-Blades
Cutting Length
100-2000mm
PLC
Delta, Taiwan
Servo Motor
Yaskawa, Japan
Inverter
Delta, Taiwan
Touch Screen
Taiwan
Voltage
3p, 380V, 50Hz
Weight
3200kgs
Dimension
5600*2250*2170mm
Transport Package
as Requested
Specification
30
Trademark
SANWIN
Origin
Ruian, Zhejiang
HS Code
84418090
Production Capacity
500PCS/Year

Product Description

SWJG-30 Three-heads Multi Cutters Paper Tube Core Making Machine
Descriptions: SWJG-30 Multi-cutters three Heads paper tube & core making machine equipped with Numerical and Multi-blades Cutting System & Three-heads Winding System. Suitable for paper tubes with thickness 1-10mm.

-- 1.PLC controlling system with automatic operation.
-- 2.Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- 3.Adopt with Multi-cutters and online cutting length reaches to 100-2000mm. Paper tubes can be finished in one-step.
Technical Parameter:
Technical Parameter
Paper Layer 3-16 Layers
Inner Diameter 25-200mm
Wall Thickness 1-10mm
Winding Speed 5-20 meters/min
Winding Nose Three noses two belts
Cutting System Servo Synchronous Tracking Cut
Gluing Way Double Sides
Length fixing Encoder
Operator 2-3 persons
Speed Control By Inverter
Power Supply 380V/3Phase/50Hz
Measurement & Weight
Measurement 4100*1650*1800mm
Working Space 11000*7000mm
Weight 3500kgs
Control System
Main motor 3.5kw x 3pcs Wannan
PLC Xinjie
Man-machine Interface Xinjie
Inverter 11KW Wosen
Servo Motor / Driver Dongyuan
Lead Screw / Slider Shangyin
Pneumatic Components Jingwei
Electric Components CHNT
Bearing Haerbin
Configuration
Paper Reel Stand 16 Layers Integral Type
Gluing System 16 Layers Spraying Type
Inner Paper Shelf 1 Set
Belt 2 Pieces
Mandrel Shaft 1 Piece
Useful Tool 1 Set

Machine Photo:
- Three Heads Spiral Winding
- Multi-knives Online Cutting System
