Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Product Name
Small Crawler Excavators 6ton 6.5ton Mini Digger
Digging Bucket Capacity
0.5cbm
Transport Package
Plywooden Case
Specification
3.55*1.1*2.2m
Production Capacity
100 Set/Month
Packaging & Delivery
Package Size
580.00cm * 230.00cm * 220.00cm
Package Gross Weight
5850.000kg
Product Description

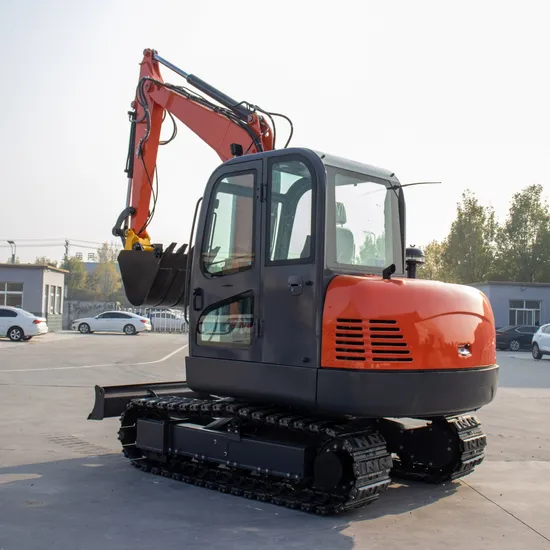

Small Crawler Excavators 6ton 6.5ton Mini Digger Machine mini excavator
1) Simple structure and compact design ,easy in installation and maintain. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
More Information and vidoe of our 2.2ton mini excavator,
| Product Name | Small Crawler Excavators 6ton 6.5ton Mini Digger Machine mini excavator |
| Model | HT60 |
| Weight | 6000kg |
| Digging bucket capacity | 0.5cbm |
| Bucket width | 500mm |
| Engine | Japan engine |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 24.2kw/3600r/min |
| Swing motor | SHANYANG(BMRS-250) |
| Traving motor | SHANYANG(BMT245) |
| Travel speed | 3.5km/h |
| Main Dimension |
| Overall dimension(L*W*H) | 5550*2030*2219mm |
| Wheelbase | 1970mm |
| Total length of track | 2230mm |
| Platform ground clearance | 380mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896mm |
| Track width | 180mm |
| Track height | 320 mm |
| OPERATING RANGE |
| Max. Digging depth | 1650mm |
| Max. Vertical digging depth | 1375mm |
| Max. Digging height | 2610mm |
| Max. Dumping height | 1850mm |
| Max. Digging radius on ground | 2850mm |
| Min. Rotation radius | 1330mm |
| Max. Upgrade height of bulldozer blade | 345mm |
| Max. Digging depth of bulldozer blade | 255mm |
>>
