Hydraulic Hose Pipe Fitting Crimping Press Machine Suppliers Price

Product Description

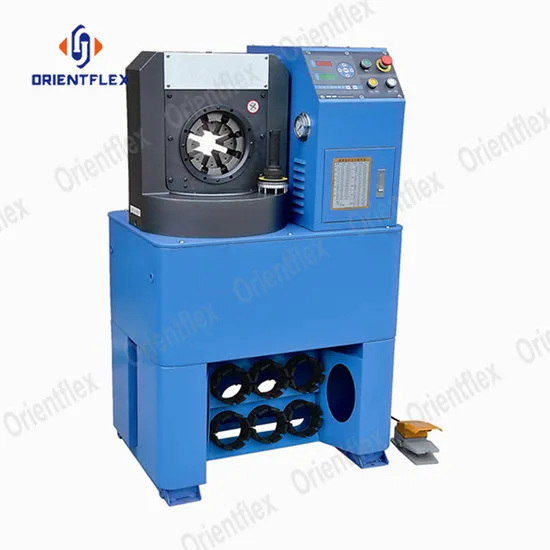

PT51A Super Thin Hose Crimping Machine
PT51A hose crimpers are our new products. This type machine has high working efficiency, it can undertake batch operation, with a large opening, and it can adapt to various shaped connectors, high precision crimping, ensure the quality of the products. With the development of technology and innovation, The control system of this machine has been upgraded to a full digital control type, make customers working more simply, fast, intelligent. We will do our best to create satisfied with the brand!

Lock range	6-150mm
The amount of die	10 sets of
Withhold accuracy	0.01mm
The system pressure	30Mpa
Power	4Kw
Voltage	380V
Buckling	420T
Press number	400/hour
Size and shape	790*580*950
Weight	540Kg
Package size	0.89*0.72*1.59
Packed weight	652

Function Instruction: Tighten size: display the dimension data for tighten Loosen size: display the dimension data for loosen Adjust key: to adjust and select the dimension for tighten or loosen Start button: to start the equipment Emergency stop: to stop the equipment, an emergency stop Modes icon: display all modes of the equipment Mode select key: Mode selection Tighten button: Machine tighten operation Loosen button: Machine loosen operation
Modes Instruction:
Operation:
Maintenance: 1. You should often add oil to the working surface and die base surface, and keep them clean. 2. The working surface of the machine should keep clean (If the machine was not used for a long time). You ought to inject enough grease lubricant before the machine operates. 3. You should ensure the oil clean, otherwise it will decrease the life of machine.
4. Clean oil filter and internal tank regularly,and filter the oil once in a year.

---
