Full Automatic Program Control Hydraulic Copy Paper Cutting Machine Slitting Guillotine

Product Description

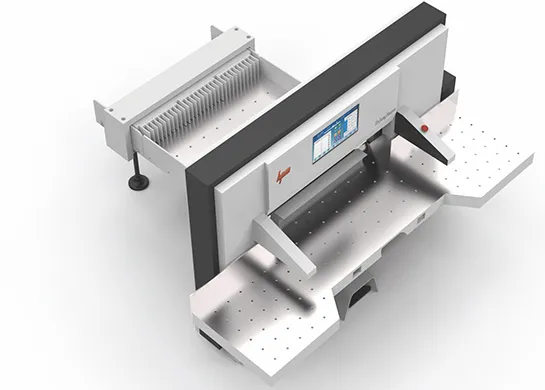

HPM S16 Program Control Paper Cutter


Computer System
16 inch full touch display screen, German operating system is equipped to meet the operating habits of domestic users and guarantee convenient operation; Mainboard adopted industrial chip imported from Italy; Highly sensitive of the touch screen has real-time responses; Equipped with signal amplification function and excellent anti-interference to avoid dimension errors due to drive aging; Dimension in front of knife will be displayed to facilitate sizes for cutting; Program storage capacity is 300 programs, each program can store 200 items cutting size. computing with four operations, output programs in real time; Equipment has relative positioning function relative to current position; With minimal compensation, it can rapidly correct program errors due to paper distortions; It can rapidly find out user-defined number of cutters; Each air cushion program can be programmed; The time of automatic cutting signals can be set up and cancelled; single automatic cutting can be started by inputting a password; High and low speeds can be manually switched over rapidly; .



Machine Performance
Chrome-plated for main worktable and side tables, and has the device of air cushion, which is convenient for backgauge running. Adopts high stiffness linear guides and high precision gapless lead screw to ensure backgauge accuracy and effectively improve the anti-impact capability against unidirectional impact. Adopts double hydraulic system which is composed of two hydraulic circuits. When press the footpedal, the hydraulic oil goes through the primary hydraulic circuit made up of reducing valve and spillover valve, and gives the cutting paper micro pressure. The pressure is only several kilograms and can't hurt operator's hands. At the time of cutting paper, put thousands of kilograms of high pressure to ensure the cutting quality and safe operation. Uses Japan NSK bearing of low maintenance, Italy oil pump and German DICHTOMATIK sealing elements. Main electronic units are from French TE and Japanese ORMON brands. It adopts inside electronic knife locker, which can effectively avoid knife-sliding. Adopts main motor overloading protection safety device for cutting, infrared photoelectric protection, and buttons by two hands safety devices.






Configuration Listing

No.	Name	Brand, specification & model	Origin of brand
1	Background LCD	16''Color touch Interface	China
3	Backgauge position motor	INOVANCE servo motor	China
4	Pick-up	Autonics	Korea
5	Limit switch	TE	France
6	Guarding motor	TE	France
7	Air switch	TE	France
8	AC Contactor	TE	France
9	Miniature relay	TE	France
10	Switching power supply	TE	France
11	Power switch	CANSEN	China
12	Press-button	TE	France
13	Ball screw	High accurate	Korea
14	Linear guider	High accurate double linear guides	Taiwan
15	Hydraulic system	Combination Valve	Germany
16	Oil Pump	HP	Italy
17	Bearing	NSK	Japan
18	Work Table	Slotless and plated chromium work table	China

Technical Parameter

Model	Unit	92	115	130	137	168	188
Max.Cutting Width	cm	92	115	130	137	168	188
	inch	36.2	45.3	51.2	53.9	66.1	74
Max.Cutting Length	cm	92	115	130	145	168	188
	inch	36.2	45.3	51.2	57.1	66.1	74
Max. Cutting Height	mm	120	165	165	165	165	165
	inch	4.7	6.5	6.5	6.5	6.5	6.5
Min. Cutting Size (without false clam plate)	mm	25	30	30	30	30	30
	inch	1	1.2	1.2	1.2	1.2	1.2
Min. Cutting Size (with false clamp plate)	mm	90	90	90	90	90	90
	inch	3.5	3.5	3.5	3.5	3.5	3.5
Front Table Length	cm	63.2	71.5	73	73	75	75
	inch	24.9	28.1	28.7	28.7	29.5	29.5
Max.Clamp Pressure	N	30000	40000	40000	45000	60000	70000
Max. Cutting Speed	time/min	45	46	46	46	46	46
Main Motor	KW	3	4	4	4	8.5	8.5
Net Weight	Kg	2300	3700	3900	4100	6200	6600
Gross Weight	Kg	2500	4100	4300	4500	7000	7400
Packing Size(L×W×H)	cm	228×140×188	285×190×210	285×190×210	310×190×210	360×205×220	380*205*220

---
