2025 Bcmc CNC Stone Engraving Machine Automatically Granite Carving Machine with Rotary Axis Types of CNC Router for Stone Tombstone Kerbstone Carving Machine

Product Description

Product Description

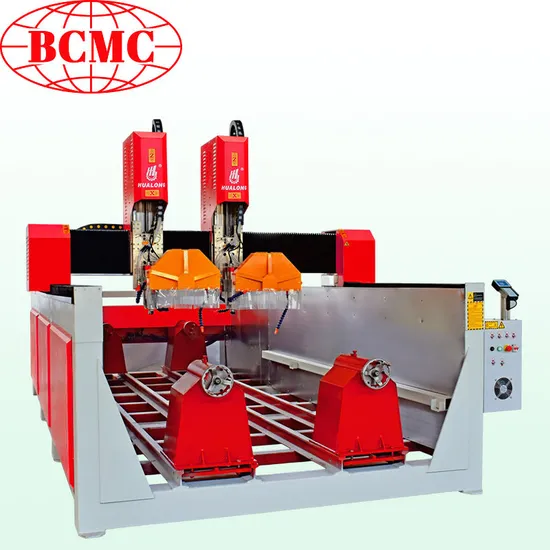

BCMC Machinery BCSD-1530M-2 is a kind of multifunctional 4 axes CNC manufacturing machine for tube column and flat stone engraving. Frequently used in stone processing and home decoration industry for stone processing. Able for granite, ceramic, natural granite profilling and processing. Equipped with saw blade and drill head for different kind of processing requirement.
Main Features: Highly precision. Good final product shape and effect. Processing with two columns in one time. Efficiency and powerful G code supported. Easy control. Versatile function, 2D & 3D engraving, drilling, lettering, profile cutting function supported. Break to rusume function. Continue carving from break point after power resuming from failure. Compatible with Artcam JD Paint CAM software and other software programs. Good heat, shock and bad environment resistance. Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
Technical Parameter

Model No.	BCSD-1525M-2	BCSD-1530M-2	BCSD-1535M-2
Relief working size	150*250*35cm	150*300*35cm	150*350*35cm
Max. processable cylinder size	2500mm*ø600mm	3000mm*ø600mm	3500mm*ø600mm
Number of working head	2 pcs	2 pcs	2 pcs
Gantry	Thickened aging steel gantry	Thickened aging steel gantry	Thickened aging steel gantry
Feeding height	≤ 400 mm(customizable)	≤ 400 mm(customizable)	≤ 400 mm(customizable)
Spindle power	3.7 /4.5 / 5.5 kw (customizable)	3.7 /4.5 / 5.5 kw (customizable)	3.7 /4.5 / 5.5 kw (customizable)
Spindle rotating speed	6000-24000 rpm/min	6000-24000 rpm/min	6000-24000 rpm/min
Relief working	30000 mm/min	30000 mm/min	30000 mm/min
Diameter of engraving tool	ø1-16 mm	ø1-16 mm	ø1-16 mm
Positioning precision	+/- 0.03 mm	+/- 0.03 mm	+/- 0.03 mm
Repeat positioning accuracy	+/- 0.02 mm	+/- 0.02 mm	+/- 0.02 mm
Command code	G code	G code	G code
Driving system	Step / Hybrid servo / Servo (customiable)	Step / Hybrid servo / Servo (customiable)	Step / Hybrid servo / Servo (customiable)
Cooling system	Water cooling	Water cooling	Water cooling
Dimensions (L x W x H)	230x460x220cm	230x510x220cm	230x560x220cm

Detailed Information For Spare Parts: Control system: Support control system customization. NC studio / shanlong / RichAuto DSP control system choosable. Cooling system Assemble with water cooling system for machine cooling. Protect the machine being working in a much too hot environment. Application: * Bas-reliefs * Line engraving Cutting, Edge inversing * Funeral tablets/gravestones, Milestones * commemorative plates
* Furniture, Fireplace. * Countertops, Sink hole, grooving, shower trays * 3D engraving, Roman column, column cap & base

---
