720P Miniature Camera Module for Endoscope 720P Camera Module Camera Module Suppliers
Endoscope Camera Module Description

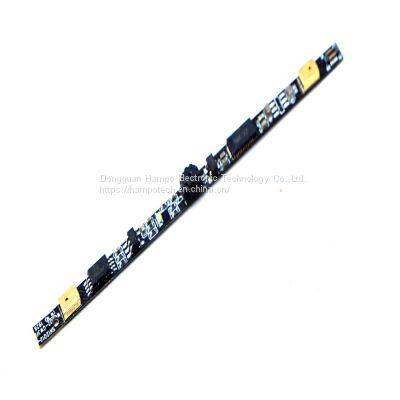

003-0853 is a kinds of mini USB camera module, the delicate and small shape with 1MP HD(1280*720P@30fps) of resolution, show an excellent function on laptop, endoscope etc. Using 1/9” OV9734 Cmos sensor with FOV 84°of Lens. Compatible with Widows 10, Android etc.
720P Camera Module Features:
1. Mini size with 1/9” sensor, narrow, thin shape, nice for laptop, endoscope;
2. 720P HD Resolution: Based on 1/9” OV9734 CMOS sensor, the max resolution 1280*720P at 30fps.
3. 3D Noise Reduction: This camera module has a 3D noise reduction function.
SPECS:
Camera
Sensor: OV9734
Sensor Size: 1/9”
Resolution: 1280*720P
Output: MJPC/YUY2
Frame Rate: 30fps
Wide Dynamic Range: 34DB
Lens
FOV: D=84°
TTL: 2.8mm
Construction: 3P
Mount: M3*P0.25mm
Power
Power Supply: DC 3.3V
Working Current: MAX 300mA
Physical
Operating Temp.: -30°C~+60°C
Dimension: 75*3.5mm
Applications of 720P Camera Module:
Medical
Endoscope
Laptop etc.
China Camera Module manufacturer & supplier, this product is Endoscope Mini Camera Module with Mini size with 1/9” sensor, narrow, thin shape, nice for laptop, endoscope; 720P HD Resolution; 3D Noise Reduction, and supports OEM&ODM.
