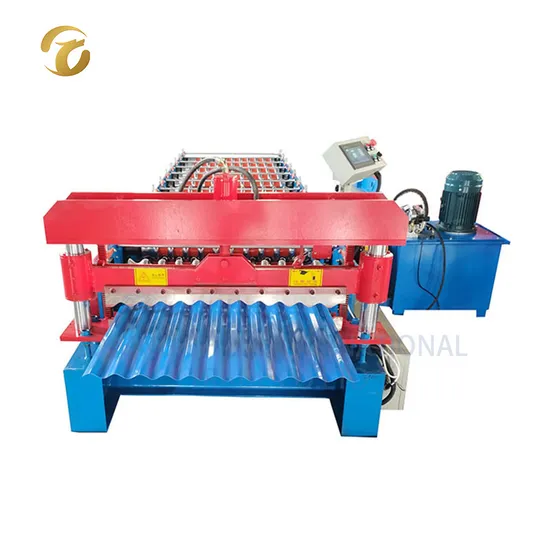

Corrugated Color Steel Cladding Panel Roll Forming Machine

Product Description

Product Parameters

Item	Data
Suitable raw material	PPGL,Galvanized coil,Galvalume coil
Raw material width	1200/1220/1250
Roof sheet width	1000mm
Raw material thickness	0.3-0.8mm
Machine motor power	4 KW
Machine appearance size	7500 x 1500 x 1400 mm
Machine weight	4500 Kg
Material of shafts	45# steel
Voltage	380V
Machine working speed	15-25 meters/ min
Control system	A PLC control system
Cutting system	A hydraulic cutting system

Product Description
1. High working speed: Using hydraulic drive motor to provide faster working speed.
2. Stable electrical control system: Siemens, Delta, chint and other well-known brands of electrical components. Make the machine stable while working.
3. Use GB standard raw materials to make the body and drum. Ensure long machine life.
4, easy to operate: just set the order on the PLC control station, the operation is very simple.
We provide customers services, the trapezoidal roofing sheet has many different shapes, usually different countries have its own popular design , we can customize the
machine as customers' demand. Here are some roof sheet designs we produced before:
Company Profile

Packaging & Shipping

a) How to choose the right machine?
Our products have corresponding pictures and videos for reference, welcome to our factory to visit the test machine.
b) How can I learn more about your products?
You can send an email to our email address. We will provide catalogues and pictures of our products for your reference.
c) Do you only sell standard machines?
We can customize according to your requirements or drawings, you can talk to us if you have any needs.
d) Do you have after-sales support?
We have a professional after-sales team. If necessary, we can send engineers to the customer site to guide the installation and commissioning of the machine.

---
