Single Cylinder 4 Stroke Small Portable Gasoline/Gas Honda Motor Road Concrete Vibrator

Product Description

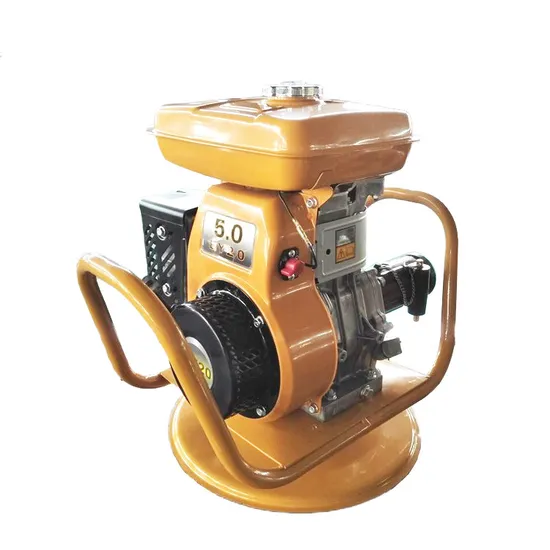

C.A.G Gasoline Engine Driven Concrete Vibrator, is powered by a 5.5HP RB or Honda engine, as well as by Chinese engines. This concrete vibrator has a 6 meter flexi-drive shaft, with the following concrete poker sizes available: 28mm /32mm /38mm /45mm /50mm /60mm. Wide ranges of pock models are suited to all types of work situations. This kind of petrol engine powered poker vibrator is the most suitable alternative for sites where there is no electric current available.
Specifications

Model	28	32	38	45	50	60
Vibration Head (mm)	28*470	32*470	38*470	45*470	50*470	60*470
Vibration / min	9800~12000
Shaft roate speed	3000-3600
Amplitude (m / min)	0.8	0.9	1.2	1.3	1.6	2.0
Flexible shaft (m)	6	6	6	6	6	6
Weight of hose	14	16	18	19	20	21
Packing size of hose(mm)	870 (L) * 660 (W) * 80 (H)
Join type	PIN TYPE ;BUTTERFLY TYPE
Engine model	S20 / S160
Fuel tank capacity (L)	3.8 / 3.6
Starting system	Recoil starter
Packing size (L*W*H) mm	515*380*515 / 515*425*445
Net weight (KG)	22 / 22

---
