Hst310 Surface Roughness Meter

Product Description

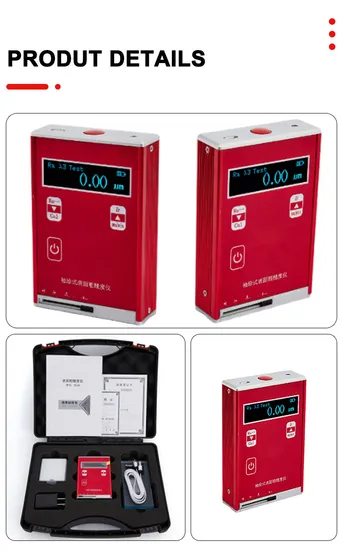

HST310 Surface roughness meter
Product Description
Overview:
This product is a new generation of pocket-friendly surface roughness meter launched by our company. It has the characteristics of high measurement accuracy, wide measurement range, easy operation, portability, and stable operation. It can be widely used in the detection of various metal and non-metal processing surfaces. This instrument is a pocket-sized instrument with an integrated sensor host. The hand-held feature makes it more suitable for use at the production site.
Technical Parameters:
Measurement parameters (µm): Ra, Rz, Rq, Rt
Stroke length (mm): 6
Sampling length (mm): 0.25, 0.80, 2.50
Evaluation length (mm): 1.25, 4.0
Measurement range (µm):Ra:0.05 ~ 15.00 Rz:0.1 ~ 50
Indication error: ±15%
Indication value variability: <12%
Sensor stylus tip arc radius and angle:Tip arc radius: 10 µm±1 µm
angle:
Sensor stylus static measurement force and its change rate:
Static measuring force of stylus: ≤ 0.016N
Force measurement change rate: ≤ 800N/m
Sensor guide pressure: ≤ 0.5N
Battery: 3.7V lithium-ion battery
Outline dimensions: 106 mm×70 mm×24 mm
Weight: 200g
Working environment conditions: Temperature: -20ºC~40ºC
Relative humidity: < 90%
No vibration or corrosive media around
