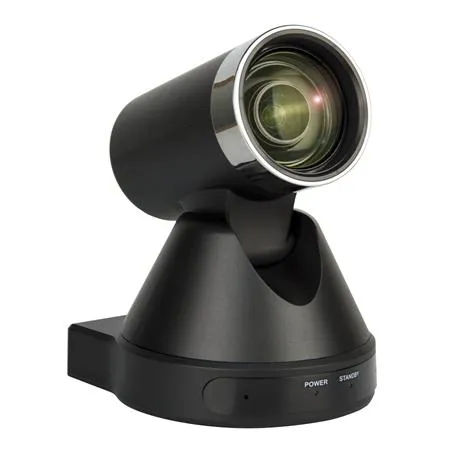

1080P 12X Build-in Microphone Auto Focus Video Conference Camera with Remote Control in China

Product Description

Main Features

---Completely New Look
Designed with worm gear transmission, completely new look, mini size, two colors for choosing from.
---Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC protocol.
---Built-in Micphone (Optional)
Built-in micphone for optional, pickup distance up to 6 meters, high sensitivity and low base noise.
---1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
---Ultra-high Frame Rate
The output frame rate up to 30fps in 1080P.
---72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom (optional).
---Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise. Even under low illumination conditions, clear images can still be acquired.
---Remote Control
Using RS232/485 interface. All parameters of the camera can be remotely controlled by the high-speed communication.
Technical Parameter

Model No.	GT-V71S / HD Video Conference Camera
Camera
Sensor	1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode	Progressive
Lens	12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom	16x (optional)
Minimal Illumination	0.5 Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Video S/N	≥55dB
Horizontal Angle of View	72.5° ~ 6.9°
Vertical Angle of View	44.8° ~ 3.9°
Horizontal Rotation Range	±170°
Vertical Rotation Range	±25°
Pan Speed Range	1.7° ~ 100°/s
Tilt Speed Range	0.7° ~ 28°/s
H & V Flip	Support
Image Freeze	Support
Number of Preset	255
Preset Accuracy	0.1°
IPC Features
Video coding standard	H.265/H.264/MJEPG
Video Stream	First stream, Second stream
First stream resolution	1920x1080,1280x720,1024x576,960x540,640x480,640x360
Second stream resolution	1280x720,1024x576,720x576(50Hz), 720x480(60Hz),720x408, 640x360,480x270,320x240,320x180
Bit Rate	32Kbps ~ 20480Kbps
Bit Rate Type	Variable rate, fixed rate
Frame Rate	50Hz: 1fps ~ 25ps, 60Hz: 1fps ~ 30fps
Audio standard	AAC
Audio rate	96K,128K,256k
Support protocols	TCP/IP,UDP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast etc
Input/Output Interface
Communication Interface	1xRS232: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
HD Interface	1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Audio Input	1-ch 3.5mm audio interface, Line In
Network interface	1xRJ45: 10/100/1000M Adaptive Ethernet ports
Power Jack	JEITA type (DC IN 12V)
Generic Specification
Input Voltage	DC 12V
Current Consumption	1.0A (Max)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption	12W (Max)
MTBF	>30000h
Size	128.5x118x156.2mm
Net Weight	0.91K g

About Grandtop Camera
Shenzhen Grandtop Electronics was established in 2005,a member of Grandtop Group, we are ISO9001,ISO13485,IATF16949 certified and UL approved factory, GT Camera is a professional AV integration and conference solution provider, since it's founded in 2008, GT Camera has been focusing on the high-definition video camera and its accessories. Its products range from HD video conferencing camera, to 4K cameras with intelligence analysis capabilities, MCU, All-in-one camera, microphone and etc. GT Camera's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
Certifications
FAQ Q1: Are you Manufacturer or Trading company?
A: We are manufacturer with more than 10 years experience.
Q2: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
Q3: Can you do OEM / ODM for us?
A: Sure, let us know what you need, we'll do it for you.
Q4: Can we visit your factory?
A: Yes, you are warmly welcomed to visit our factory anytime, our factory is only half an hour driving from the Shenzhen Airport.
Q5: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within quality guarantee period ( usually one year), you will get a brand new replacement.
Q6: What is your delivery time?
A: For samples, within 1-3 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.

---
