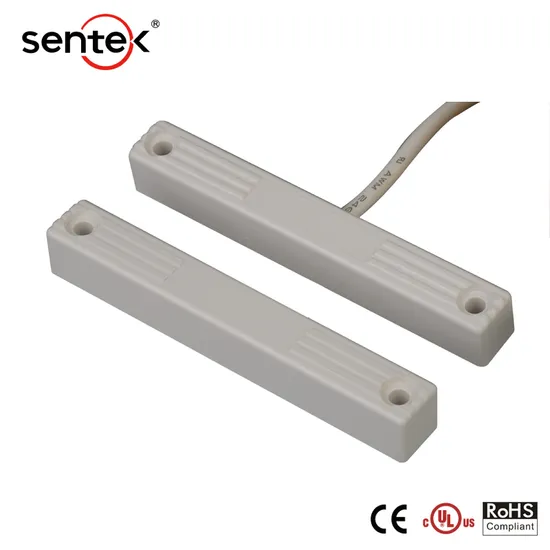

Normally Closed Antitheft Alarm Magnetic Door Contact Reed Switch (BSI-2041P)

Product Description

Specification:

Part Number	Loop Type	Reed Form	Closed Gap (Inch (mm) )	Depature Gap (Inch (mm) )	Maximum Initial Contact Resistance (Ohm)	Maximum Contact Rating (W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current (A)
BSI-2041(P)	Closed	N/O	2-1/2(65)	2.75(70)	0.150	10	100	0.5
BSI-2041A(P)	Open	N/C	2(50)		0.150	3	30	0.2
BSI-2041PC	Closed&Open	SPDT	2(50)		0.150	3	30	0.2

Industrial or Commercial Door Magnetic Sensor BSI-2041
Product Features:
1 Idea for Industrial or Commercial use
2 Screw mount
3 Spacer included
4 2 conductor jacket cable on request (BSI-2041P)
5 BSI-2041P available with superversory loop
6 Private label on request
7 BK03 bracket is available
8 Switches or magnets are available separately
9 Colors: White, Brown, Grey
