US$3,500.00-5,000.00
|
1 sets
(MOQ)
|
Basic Info.
Transport Package
Carton Box
Product Description

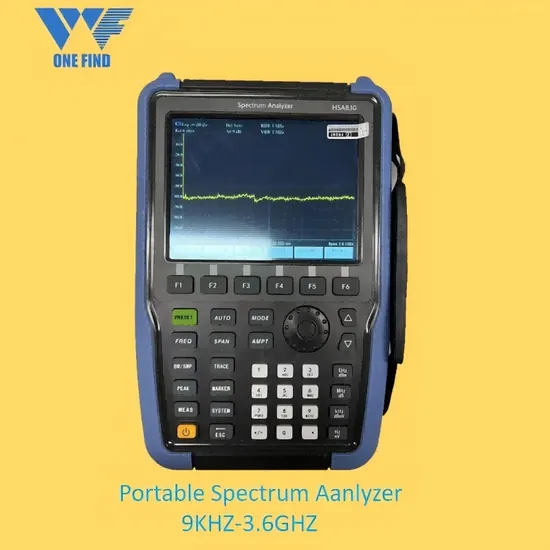

handheld spectrum analyzer
Features and Benefitd:
6.5 inch LCD Display User-Friendly Menu Li-ion Battery for 6000mAH inside PC support for remote control Support to integrate to user systems for further R&D develop USB Interface SCPI Support Specification:
| Frequency Range | 9KHz-3.6GHz |
| Frequency resolution | 1Hz |
| Readout Accuracy | ± (frequency standard reading × frequency reference accuracy +1% × span +10% × RBW +0.5 × [span / (sweep points -1)] +1 Hz) |
| Frequency reference stability (10MHz) | Aging rate | <1ppm/year |
| Temperature stability | <0.5ppm (15°C~35°C) |
| Resolution Bandwidth Range (RBM) |
| Range (<1KHz Optional ) | 10Hz to 500kHz (1 to 10 continuous),1MHz,3MHz |
| Selective | RBW≤500kHz | <5:1 |
| Accuracy | <5% |
| VBW | 10Hz~3MHz |
| Sweep time |
| Setting range100Hz≤SPAN≤3GHz | 10ms to 3000s |
| Span=0 Hz | 1ms to 3000s |
| Sweep mode | continuous,single |
| Frequency conter |
| Resolution | 1Hz,10Hz,100Hz,1kHz |
| Counter uncertainty | ±(frequency read value×frequency reference accuracy +counter resolution) |
| Total Amplitude Uncertainty | ±1.5dB |
| Displayed Average Noise Level(10Hz RBW) |
| Frequency | Preamplifier off | Preamplifier on |
| 100kHz | -90dBm | -110dBm |
| 1MHz | -120dBm | -140dBm |
| 100MHz | -122dBm | -145dBm |
| 500MHz | -125dBm | -145dBm |
| 1000MHz | -122dBm | -140dBm |
| 1.4GHz | -120dBm | -138dBm |
| 1.8GHz | -123dBm | -140dBm |
| 2.2GHz | -121dBm | -138dBm |
| 3.0GHz | -120dBm | -137dBm |
| Phase Noise | -80dBc/Hz @ 10kHz(typ.) |
| -90dBc/Hz @ 30kHz(typ.) |
| -115dBc/Hz @ 1MHz(typ.) |
| Amplitude |
| Maximum safe input level | Average continuous power | +27dBm |
| Max input DC voltage | 50Vdc |
| Input attenuator range | +7dBm |
| 1dB Compression point | 0 to 39dB,steps:3dB |
| Spurious response |
| TOI | +13dBm |
| SHI | +30dBm |
| Input related spurious | <-85dBm |
| Residual response(Inherent) | <-60dBc |
| Input/Output |
| RF Input | Type-SMA female(50Ω) |
| USB | Version 1.1 |
| LAN Interface | Headset jack |
FAQ Why choose Beijing W&F Technology Co., Ltd ?
1. Beijing W&F technology Co.,LTD is founded in 2006. It is a hi-tech company specialized in manufacturing and trading fiber splicing machine,otdr ,Optical Power Meter and other Fiber Optic testing equipments . Our company is one of the communication test instrument suppliers which is located in Beijing - the capital of China.
2. Famous Brand of Fiber Optic Equipment are sold : Splicing Machine ,Japanese Fusion Splicer ,EXFO OTDR ,Yokogawa OTDR , JDSU OTDR , Optical Power Meter & Laser Source , VFL ,
FTTH fiber tools
3. The quality management is the most important part in our company.
4. "High quality production with superior service" --is our quality policy.
5. "Satisfaction of the clients is service standard" --is our marketing service strate.
>>
