| US$8,000.00-8,500.00 | 1 Set (MOQ) |

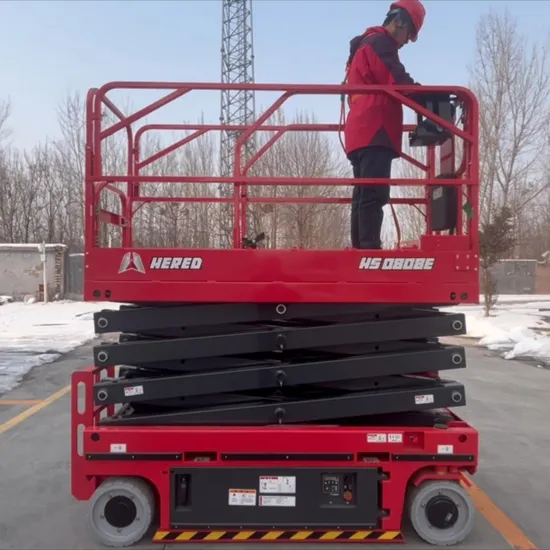

| MODEL | HS0808E |
| Max. Working Height(In/out) | 9.9m/8m |
| A-Max. Platform Height(In/out) | 7.9m/6m |
| B-Platform Length | 2.26m |
| C-Platform Width | 0.81m |
| Extension Size | 0.9m |
| D-Heights (Rails Up) | 2.36m |
| Height (Rails Down) | 1.96m |
| E-Length (with Ladder) | 2.43m |
| F-Overall Width | 0.81m |
| G-Wheel Base | 1.87m |
| H-Clearance (Stowed) | 0.1m |
| I-Clearance (Raised) | 0.02m |
| PERFORMANCE | |
| Platform Capacity | 230kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 2/1 |
| Max.Drive Speed (Stowed) | 3.5km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Out.) | 2.2m |
| Up/Down Time | 31/40s |
| Gradeability | 0.25 |
| Max. Slope | 1.5°/3° |
| Control | Proportional |
| Drive | FWD |
| Multi Disc Brake | Front |
| Max.Wind Speed | 12.5m/s |
| Tires (mm) | 381X127mm |
| POWER | |
| Batteries (V/Ah) | 24V/200Ah |
| Charger | 100-240VAC/10A |
| WEIGHT | |
| Weight | 2257kg |
