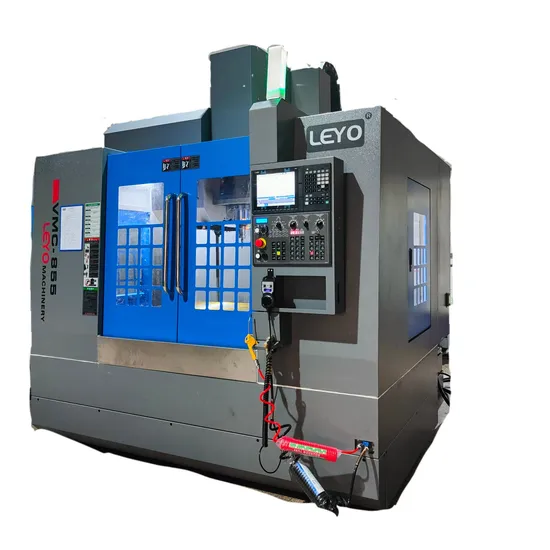

Leyo Mitsubishim80b Controller Okada Tool Library Taiwan Belt Spindle 3 Axis Vertical Machining Center Vertical Milling Center

Product Description

LEYO Hot Sale Machining Center
LEYO VMC855 Vertical Machining Center developed by Dongguan Liyang Intelligent Technology Co., Ltd. has the characteristics of high rigidity, high precision, and high-speed machining. The column adopts a gantry structure design to achieve stable processing; The workbench adopts a reasonable slider span and undergoes surface quenching to ensure uniform stress and improve hardness; The bed adopts a trapezoidal cross-section, reducing the center of gravity and improving torsional strength; The entire machine adopts the optimal structural design, providing the best overall stability performance.

LEYO VMC855 Vertical Machining Center Technical Parameters
Items		Unit	VMC855
X/Y/Z axis travel		mm	800/550/550
X/Y/Z rapid moving speed		m	48/48/48
X/Y/Z rapid feeding speed		m	20
Working table (L*W)		mm	1000x550
Working table max load		kg	600
Spindle taper hole			BT40
Spindle type*			Belt
Spindle motor power*		kw	11
Spindle speed*		rpm	10000
Controller*			Mitsubishi M80B
Tool magazine capacity *		T	24
X/Y/Z position accuracy			±0.005
X/Y/Z reposition accuracy			±0.003
Machine weight		kg	5200
Machine size		mm	2600*2400*2800
Tip:The asterisk is optional,and price is different. More requirement contact us.

Options
Controller: Taiwan:LNC M6800/M8650R(5 axis)/SYNTEC22MA/220MA-5(5 axis) Japan:Mitsubishi M80B/M80A Fanuc Oi-MF-plus German:Siemens 828D/840D(5 axis) Spindle: Belt:8000/10000 rpm Direct:12000/15000 rpm Tool library: None/24T/30T	Others: 4/5 axis cnc rotary table 4 axis disc tailstock Three jaw chuck Four jaw chuck 4 axis manual thimble tailstock 4 axis pneumatic thimble tailstock Spiral chip conveyor Chain chip conveyor Oil water separator Oil mist separator Workpiece probe Automatic tool setting instrument Coolant through the spindle (CTS 20 bar/30 bar) 3 axis optical grating rule

We also offer customized service, if you have other requirements,please contact us.

LEYO VMC855 Vertical Machining Center
-High precision -High power -High speed -Good finish
Machinable Materials:
-Carbon steel -Alloy steel -Copper -Aluminum
-Aluminumalloy -Plastics -Composite materials
Application:
-Machining small precise mold
-Make model sample by various materials, such as shoe mold, auto parts mold
LEYO VMC855 Vertical Machining Center
Specification
X/Y/Z axis travel: 800/550/550 mm
X/Y/Z maximum moving speed: 48/48/48 m/min
X/Y/Z maximum cutting feed rate: 20 m/min
Table size(L x W): 1000*550 mm
Maximum payload: 600 kg
Spindle taper hole: BT40
Spindle motor power: 11 kw
Spindle speed: 10000 rpm Belt
Three axis ballscrew rod:40*16 mm(C3 level)
Three axis linear guide:35/45/45 roller
Three axis slider:4/4/6 pcs flange type
T-slot size: 18T*5*100 mm
Distance from spindle to worktable: 110-610 mm
Distance from spindle center to column: 540 mm
Positioning/Re-positioning accuracy: ±0.005/±0.003 mm
Machine size(L*w*h): 2600*2400*2800 mm
Machine weight: 5200 kg
Tool Magazine: 24 T Disc magazine
CNC Controller: LNC/SYNTEC/Mitsubishi/FANUC/Siemens
Working table: 1000*550mm Max payload: 600kg Front chip cleaning system
Controller-Japanese Mitsubishi M80B Customized handwheel/air gun/water gun
Taiwanese Cells belt spindle 11kw 10000 rpm and Okada tool magazine 24T
Electric control cabinet and Reid heat exchanger/ Spindle oil cooler
Taiwanese Hiwin screw rod 40*16mm and roller linear guide 35/45/45mm
Taiwanese Hiwin lengthened and widened flange type slider 4/4/6 pcs
LEYOVMC855 vertical machining cente advantages:
1. Yunnan Taibiao HT300 high-strength cast iron, durable and not deformed
2. It adopts Taiwan Hiwin, Japan THK, precision P-grade roller rail, ground C3 grade screw, widened and extended flange type slider, larger load, and can be used for heavy cutting.
3. Swedish and German bearings are used, and pre tensioning technology is used for assembly to improve the stability of the bearings.
4. Standard spindle cooling system
Dongguan Liyang Intelligent Technology Co., Ltd.is a LEYO cnc machine manufacturer. It is located in Houjie Town, Dongguan City, Guangdong Province, China,2 km from Humen High Speed Rail Station,45 minutes drive to Shenzhen Airport and 90 minutes drive to Guangzhou Baiyun Airport.
Our main products are middle and high quality 3-5 axis cnc machine:CNC milling machines like small high-speed cnc milling machines, large gantry milling machines, etc; cnc machining center like vertical machining center, horizontal machining center, vertical horizontal dual-use machining center, compact machining center,gantry machining center, etc; and cnc lathe like turret machine,5 axis turning milling machine etc.
These machines are mainly used in the producing and machining of parts and molds in 3c electronics, automobiles, instruments and meters, electronic appliances, medical devices, aerospace, machinery manufacturing, new energy vehicles, 5G communication industries and other industries. Our company has obtained several utility model patents and invention patents, CE certificates, ISO9001 quality management system certificates, and factory strength certification from SGS, TUV and other international testing and certification institutions. Our machinery and equipment are sold to the domestic and foreign markets. The main domestic markets are Guangdong, Zhejiang, Fujian, Sichuan and many other provinces. The international market is mainly exported to Europe, Central Asia, Southeast Asia and other countries. Our goal is to provide the world with high-quality cnc machines with good price.
About LEYO service
1. Customized service
1. Design logo for free or remove logo services.
2. Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services.
3. Customized machine configuration for free. Customized according to customer configuration requirements, such as the brand and model of screw rod and linear guide rail, the brand power and speed of spindle, the brand and model of controller, and the type of tool magazine.
4. Customized special machines for free. If you have special requirements on the material, process, precision and efficiency of the products you are processing, we can customize the models based on the products you are processing.
5. Free design of automatic production line.
The customization quantity and price will vary according to the complexity of customization.
2. One stop procurement service
Provide accessories, 4/5 axis cnc rotary table, 4 axis tailstock, tool setting instrument, measuring probe, chip conveyor, etc. Consumables like tools, tool holders, tool carts, tool boxes, etc.
3. Free online and offline after-sales service
The warranty period of all models is one year, and spare parts and online and offline after-sales services are provided free of charge within one year. However, the travel expenses of after-sales personnel need to be paid by the customer, such as transportation, board and lodging.Lifetime free online after-sales technical guidance service.
4. Fast delivery service
If you need it urgently, please tell me the expected delivery date, and we can arrange it according to customer needs. The fastest production time is 7 working days.

---
