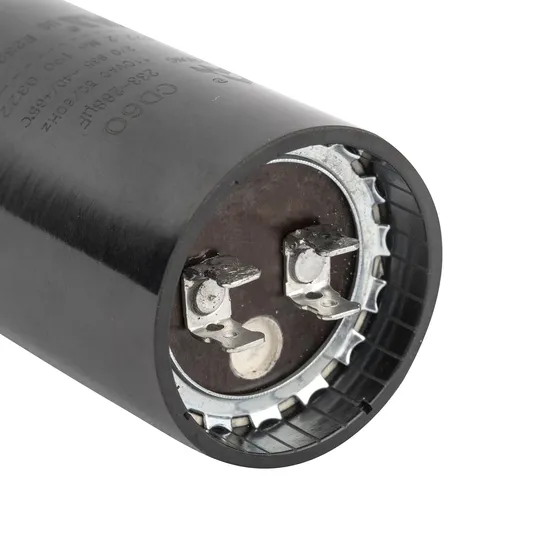

Black Shell Qualified Start Capacitors (CD60)

Product Description

CD60-B MOTOR START CAPAClTORS
Main Feature:
Bakelite case
Voltages from 110V AC to 330V AC
UL Recognized Capacitors
Applicable Scope :
To start and run single phase m0tors in alternating current usage,
And it suit for single phase A.C. motors with frequency of 50/60Hz.
General Specifications:
Operating Temperature:-25~+65ºC
Voltage Range:110~330V AC
Capacitance Range:21~1280μf
Capacitance Tolerance:+/-20%
Operate Frequency:50/60Hz
Case Size:8 Standard Size from
1 437"x2.750" ~2 562"x4.375"/36mm x 70mm~65mm x111mm
Termination:1/4 " Quick Disconnect Terminals(Std.)
Performance Specification:Meets Requirements of ElA-463-A
Product Description
CD60 start capacitor is developed and researched according to standard of American
Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of
bakelite plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popular
used for the super AC application as good life, higher degree of reliability and stability.
Case size of Standard Products (mm)

Rated Voltage Capacitance Range	110-125V	165V	220-250V	330V
	D X H(mm)
21-25	36.5 x69.85	36.5 x69.85	36.5 x69.85	36.5 x69.85
25-30	36.5 x69.85	36.5 x69.85	36.5 x69.85	36.5 x69.85
30-36	36.5 x69.85	36.5 x69.85	36.5 x69.85	36.5 x69.85
43-53	36.5 x69.85	36.5 x69.85	36.5 x69.85	46.02 x85.72
53-64	36.5 x69.85	36.5 x69.85	36.5 x69.85	46.02 x85.72
67-77	36.5 x69.85	36.5 x69.85	36.5 x69.85	46.02 x85.72
88-108	36.5 x69.85	36.5 x69.85	36.5 x69.85	46.02 x85.72
124-149	36.5 x69.85	36.5 x69.85	36.5 x69.85	52.37 x111.12
161-193	36.5 x69.85	36.5 x85.72	36.5 x85.72	52.37 x111.12
200-240	36.5 x69.85	36.5 x85.72	36.5 x85.72	52.37 x111.12
216-259	36.5 x69.85	46.02 x85.72	46.02 x85.72	52.37 x111.12
270-324	36.5 x69.85	46.02 x85.72	46.02 x85.72	65.5x111.12
300-360	36.5 x69.85	46.02 x85.72	46.02 x85.72	65.5x111.12
340-408	36.5 x85.72	46.02 x85.72	46.02 x85.72	65.5x111.12
400-480	46.02 x85.72	46.02 x85.72	46.02 x85.72	65.5x111.12
430-516	46.02 x85.72	46.02 x85.72	46.02 x85.72	65.5x111.12

Note:All other types of products in form can be fulfilled at the request of customers.

Case size	1	2	3	4	5	6	7	8
Dimension(D x H)(mm)	36.5 x69.85	36.5 x85.72	36.5 x111.12	46.02 x85.72	46.02 x111.12	52.37 x85.72	52.37 x111.12	65.50 x111.12
Dimension(D x H)(mm)	1.437 x2.750	1.437 x3.365	1.437 x4.365	1.812 x3.365	1.812 x4.365	2.062 x3.365	2.062 x4.365	2.562 x4.365

---
