Basic Info.
Model NO.
off grid system
Application
Home, Industrial, Commercial
Specification
Normal, normal
Standard Voltage
230/220V
Communicateion Protocol
RS485 & WiFi
Load Charging
Flexible Schedule
Transport Package
Carton Box with Wooden Pallet, Suit for Export
Production Capacity
5000/Week
Packaging & Delivery
Package Size
675.00cm * 560.00cm * 330.00cm
Package Gross Weight
66.000kg
Product Description
Product Description
Product Parameters

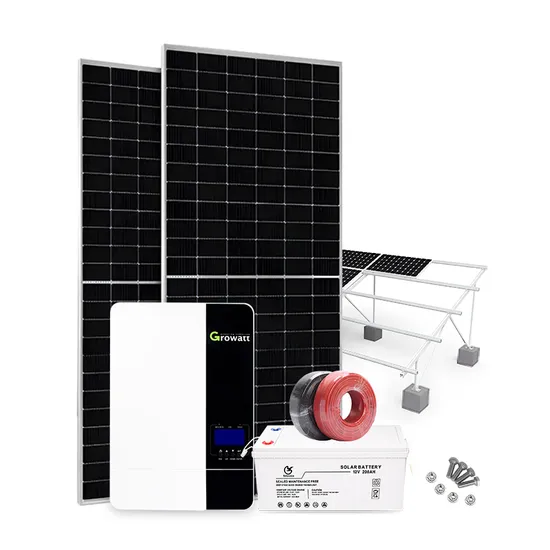

| 15KW Off Grid Solar Power System |
| Item | Model | Description | Quantity |
| 1 | Solar Panel | mono half cell 550w solar panel CE / TUV (IEC 61215 & IEC 61730) | 28pcs |
| 2 | Combiner Box | 2input 1output | 3pc |
| 3 | Off Inverter | 15KW(5000ES parallel) | 3pc |
| 4 | Lithium Battery/Lead Acid Battery | 10kWh(51.2V 200AH) | 2pc |
| 5 | Mounting Support | Roof/Ground | 6set |
| 6 | Cable | 4mm PV cable | 200m |
| 7 | Solar Connector | MC4 Connector | 10pairs |
| 30KW Off Grid Solar Power System |
| Item | Model | Description | Quantity |
| 1 | Solar Panel | mono half cell 550w solar panel CE / TUV (IEC 61215 & IEC 61730) | 54pcs |
| 2 | Combiner Box | 2input 1output | 6pc |
| 3 | Off Inverter | 30KW(5000ES parallel) | 6pc |
| 4 | Lithium Battery/Lead Acid Battery | 10kWh(51.2V 200AH) | 3pc |
| 5 | Mounting Support | Roof/Ground | 1set |
| 6 | Cable | 4mm PV cable | 400m |
| 7 | Solar Connector | MC4 Connector | 15pairs |
Detailed Photos
· Open Circuit Voltage-Voc (V) : 49.9V
· Short- Circuit Current-Isc (A) : 14.0A
· Voltage at Pmax-Vmp (V) : 41.96V
· Current at Pmax-Imp (A) : 13.11A
· Reduced Hot Spot Loss
· Longer Life-time Power Yield
· IP68 Junction Box
· Better Weak illumination Response
· Enhanced Mechanical Load
· Multi Busbar Technology · Integrated MPPT charge controller.
· Equalization charging function.
· Work with battery or without battery.
· Maximum PV input voltage up to 450VDC.
· Configurable grid or solar input priority.
· Optional WIFI/ GPRS remote monitoring.
· Support parallel operation for capacity expansion up to 30kW.
· PV and Grid power the load jointly if PV energy unsufficient.
· Flexibly schedule the Inverter charging and discharging time.· With communication belt key display, metal housing
· Continuous discharge current: 100A
· Supports a maximum of 15 parallel groups
· Charging voltage: 54.75V
· Discharge cut-off voltage: 43.5V
· Increase BMS with 200A currentCertifications
Packaging & Shipping
FAQ
Q1: How to choose the right system?A1: Pls tell us what kind of energy storage system and the capacity of the PV project installation, the scenario of the project installation, the arrangement of the components.Q2: How about the delivery time?A2: Delivery time 7~20 days for bulk order.Q3: What is the warranty for solar system?A3: Generally warranty for main product. Solar panel 25 years , on grid&hybrid inverter 5 years, growatt off grid inverter warranty 2 years.Q4: How can I get better service from you?A4: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
>>
