2018 Zenith Wholesale Stone Crushing Machine

Product Description

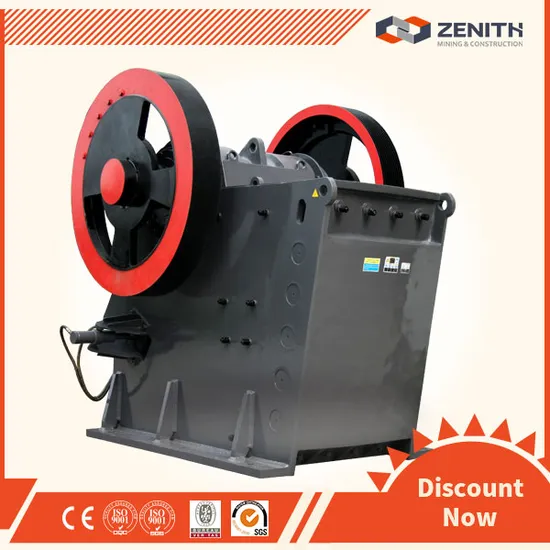

2018 Zenith wholesale stone crushing machine
wholesale stone crushing machine introduction:
New generation wholesale stone crushing machine is born with innovative significance. crushers prices is one lind of new crushers prices whcih is used to primary crushing stones. It is newly designed and improved by our experts on basis of their more than 20 years' crusher manufacturing and designing experience. This type new crushers prices is the most popular one widely used in many different fields. The unique design concept makes this series crusher achieve perfect combination between crushing efficiency and operating cost. Meanwhile, it has wide range of application, particularly suitable for crushing hard rock, such as basalt, river pebbles.
The features of wholesale stone crushing machine :
1. Durable moving jaw assembly.
2. Integral cast steel bearing housings.
3. Fast and safe setting adjustment.
4. Reasonable cavity design.
5. Larger-size and larger-carrying-capacity bearings.
6. Compact & robust structure.
Application of wholesale stone crushing machine

wholesale stone crushing machine is ideal for primary and secondary crushing. With the increase of production, our jaw crusher can greatly reduce the operating costs. And it is of reliability and flexibility. The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity. The jaw has a smaller discharge setting, allowing for a higher degree of flexibility with relative equipment. Positive setting adjustment is easy. The jaw crusher has features of simplicity, easy access and low maintenance. Jaw crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc
Working principle of wholesale stone crushing machine

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

wholesale stone crushing machine parameters:

Model	Feed Inlet Size (mm)	Max Feed Size (mm)	Outlet Range (mm)	Capacity (t/h)	Motor Power (KW)	Weight (ton)	Overall Dimension(mm)
PEW760	760x1100	620	75-200	150-350	110-132	24	2600×2500×2200
PEW860	860x1100	720	100-225	200-500	132-160	32	3300×2320×3120
PEW1100	1100x1200	930	150-275	300-650	185-200	59.2	4140×2660×3560
PEW400x600	400x600	350	35-85	15-70	37	6.8	1920×1460×1840
PEW250x1200	250x1200	220	20-40	20-50	37	6	1400×2050×1310
PEW250x1000	250x1000	220	20-40	15-50	30	5.6	1400×1850×1310

---
