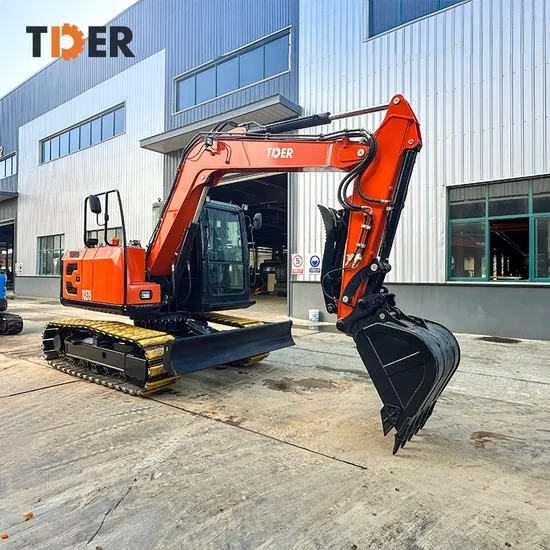

Tder Hydraulic Pilot Crawler Excavadora 7.5ton CE Digger Excavator

Product Description

Product Parameters

Performance Parameters	Unit	TCE75
Operating Weight	Kg	7500
Engine Model		Kubota V2607
Rated Power	Kw	42.4KW/2000rpm
Bucket Capacity	m³	0.28
Max Digging Force	Kn	56
Swing Speed	rpm	0-11
Traveling Speed	km/h	2.8
Gradeability	°	70(35°)
Max. Digging Radius	mm	6182
Max. Digging Depth	mm	3898
Max. Digging Height	mm	7023
Max. Dumping Height	mm	5195
Max. Dozer Cutting Distance	mm	332
Max. Dozer Lifting Distance	mm	385
Tail Swing Radius Distance	mm	1730
Overall Length	mm	6054
Overall Width	mm	2216
Overall Height	mm	2672
Mini.Ground Clearance	mm	375
Track Width	mm	450
Undercarriage width	mm	2195
Undercarriage ground clearance	mm	375

*Please contact us if you need more detailed parameters.
Product Description
1. The advanced hydraulic system not only provides the best balance between power and efficiency, but also gives you the controls you need to meet your precise digging requirements.

2. The major stress locations are reinforced to resist against severe working conditions. Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.

3. Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.

4. The whole machine can be equipped with quick-change line, auxiliary two-way line, auxiliary one-way line and auxiliary rotary line, which expands the function of the whole machine.

5. With mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved.

6. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability.
Packaging & Shipping
*All products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing machines.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certifications
Company Profile
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer Feedback

Attachments
SPARE PARTS
Professional Service
TDER offers customized services.
You can freely change the color, engine, LOGO and more.
"TDER makes every mechanical gear customizable."
FAQ 1. Why choose us? As a manufacturer, TDER industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services. 2. What is the product range of our factory ? Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements. 3. What payment terms can we accept? Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted. 4. What Certificates do we have? All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed. 5. How about our delivery time? Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order. 6. Can we provide OEM service? TDER industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

---
