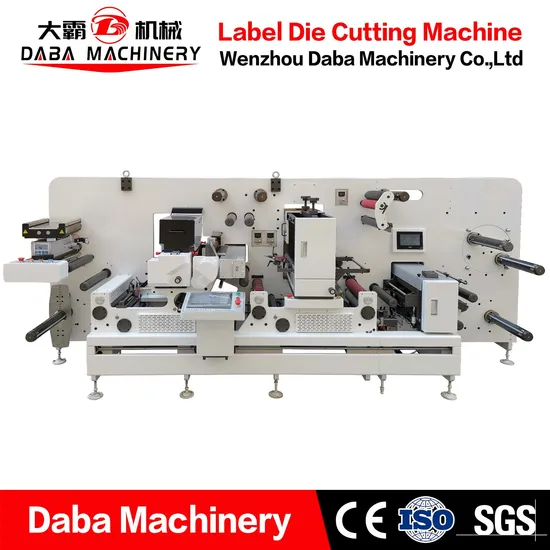

Rotary Intermittent Flexo Printing Die Cutting Slitting Rewinding Machine

Product Description

Product Description Machine Parameter DBGS-370B is an updated equipment of DBGS-370, the machine update the full rotary printing unit of DBGS-370 to semi rotary printing unit, equipped with semi-rotary flexo printing unit, intermittent die cutting ahd slitting, ect.
In flexo printing, can do cold stamping, vanish, laminating, printing, also accept multi colors printing requirement, using color tracking sensor for re-printing job for printed material.
The machine can increase inspecting system, cross cut, IML die cutting, turret rewinder, ect. according cutsomer exact requirement. using advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency, with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label short and medium-length orders after die cutting machine.

Machine Unit	Specification	DBGS-370B	DBGS-470B
Unwinding Unit	Max. Web Width	370mm	470mm
	Max. Unwinding Dia.	800mm	800mm
	Airshaft Dia.	3inch (76mm)	3inch (76mm)
	Tension Control	automatic taper tension control
Web Guide Unit	Max. Web Width	370mm	470mm
	Splice Table	Pneumatic web clamps
Flexo Printing Unit (Full rotary / semi rotary)	Max. Printing width	350mm	450mm
	Max. Printing Repeat	445mm (standard) 665mm (optional)
	Max. Printing Speed	60m/min	60m/min
	Printing Dryer	UV Dryer	UV Dryer
	Printing Part	Ceramic Anilox cylinder, Chill Drum, 140T(standard) Printing Cylinder, Ink Pan
Die Cutting Station	Max. Die Cutting Width	350mm	450mm
	Max. Die Cutting Repeat	445mm (standard) 665mm (optional)
	Max. Die Cutting Speed	120m/min (full rotary ) 60m/min (semi rotary )
	Magnetic Cylinder	140T (standard) ~210T (optional)
	Gearing	1/8 inch, 20 degree pressure angle
Waste Matrix Unit	Max. Waste Rewinding Dia	600mm	600mm
	Waste Airshaft Dia	3inch(76mm)	3inch (76mm)
	A driven capstan roller with adjustable tension control ensures reliable matrix stripping, enabling high speed running even if the matrix rewind becomes unstable.
Slitting Unit	Max. Slitting Width	350mm	450mm
	Min. Slitting Width	20mm	20mm
	Slitting Width Adjust Way	Manual (standard) / Automatic (optional)
	Max. Slitting Speed	300m/min	300m/min
	Slitting Blades Quantity	6sets(standard)	6sets(standard)
	Slitting Blade	circular knives (standard) / razor blade (optional)
Rewinding Unit	Max. Rewinding Dia	600mm	600mm
	Rewinding Airshaft	Standard: dual rewinder (up and down) with 2pcs airshaft in 3inch Optional:semi-turret up rewinder with one lower rewinder total with 3 pcs airshaft in 3inch (standard) 1inch, 1.5inch (optional) for upper turret rewinder
	material running direction	support dual (forward and verse) direction running
	Tension Control	automatic taper tension control

Application The machine suitable to adhesive label production of various product.
Detailed Images Flexo Printing Unit -Panasonic brand servo motor
Die Cutting Unit - Panasonic brand servo motor
Waste Matrix Unit
Slitting Unit

Rewinding Unit
Touch Panel
Our Service
Packing & Delivery

Packaging
Size	3.8M (L) * 1.5M (W) * 1.8M (H)
Weight	3 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
