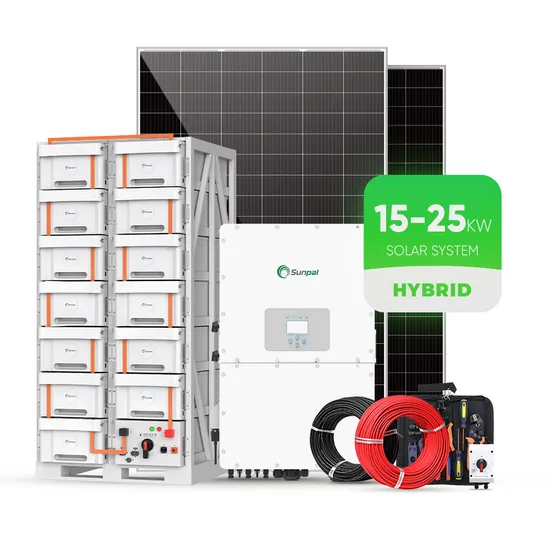

Sunpal Full Off Grid Solar Power System 15Kw 20Kw 25Kw Home Solar Systems For Sale

Product Description

Product Description
Warranty
How it works
What's Included:

Model	SP-3KW-OFF	SP-5KW-OFF	SP-10KW-OFF
Half Cut Mono 550W Solar Panel	6 Pieces	8 Pieces	20 Pieces
PV Combiner Box	3 Input,1 Output 1 Piece	3 Input,1 Output 1 Piece	4 Input,1 Output 2 Piece
Off-Grid Hybrid Inverter	HF4830S60	HF4850S80	HFP4850S80/2PCS
GEL Battery	12V 200AH/4PCS	12V 200AH/4PCS	12V 200AH/8PCS
DC Cable 4mm2	100 meter	200 meter	400 meter
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Model	SP-15KW-OFF	SP-20KW-OFF	SP-30KW-OFF
Half Cut Mono 550W Solar Panel	24 Pieces	32 Pieces	48 Pieces
PV Combiner Box	4 Input,1 Output 3 Piece	4 Input,1 Output 4 Piece	4 Input,1 Output 5 Piece
Off-Grid Hybrid Inverter	HFP4850S80/3PCS	HFP4850S80/4PCS	HFP4850S80/6PCS
GEL Battery	12V 200AH/12PCS	12V 200AH/16PCS	12V 200AH/20PCS
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Half Cut Mono 550W Solar Panel
Peak Power Watts: 550WMaximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63ADimensions:2279x1134x35mm Weight:26.9 kg
All-in-one solar charger inverter
All-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output.Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.Advanced MPPT technology with an efficiency of 99.9%.Monitoring SystemOpen station supports one-click installation and registration Problem support one-click dispatch and navigationSafe operation, traceable logs, etcSupport full lifecycle data storage to ensure data security and reliability Deep Cycle Gel VRLA Battery
DG (Deep Cycle GEL ) series is pure GEL battery with 20 years flfloating design life, it is ideal for standby or frequent cyclicdischarge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cyclesat 100% DOD PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.Mid & End Clamps: 35,40,45,50mmL Foot Asphalt Shingle Moount & Hanger Bolt OptionalCable Clip & Tie OptionalGround Clip & Lugs Optional DC Cable & MC4 ConnectorCross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years PV Combiner Box
IP Rating: IP65Rated Voltage: 1000VDCInput cable terminal: 4-6mm2 PV ToolsWire Cable Cutter & Stripper,MC3 MC4 CrimperMC4 Connectors AssemblyDisassembly ToolOur FactoryCompany Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
Details Images & Packing
Project Case
Contact Us

---
