XCMG Official Lifting Equipment Xga20K Used Hydraulic Manlift 20 Meter Articulated Boom Cherry Picker

Product Description

Product Description

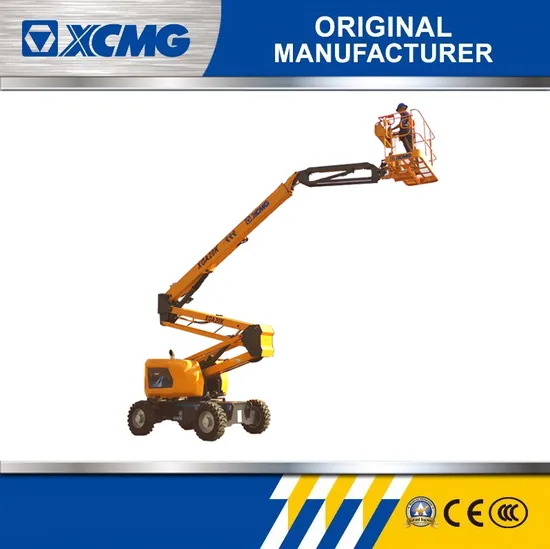

XCMG Official Lifting Equipment Xga20k Used Hydraulic Manlift 20 Meter Articulated Boom Cherry Picker
XGA20K mobile articulated boom lift is a kind of layout is compact, the obstacle-surmounting efficiency and design precision, driving strong and simple operation of the crank arm type mobile elevating work platform. The machine is easy to operate, safe and reliable, accurate and efficient, and can widely meet the needs of users in construction, steel structure, petrochemical industry, venue and lease, etc.

1.256/350 kg of double load and big load design, load performance in the industry advanced level.

2.Multi-directional precise positioning up, down and across functions as well as excellent stretch functions.

3.Electrical system USES a distributed PLC control technology, adaptive proportional valve control method, make the product environment adaptability with lead.

4.Full hydraulic pressure drive, 360 °angular free rotation, there is no Angle limits in full operation and simple operation, high reliability.

5. Compact clever, vehicle layout is compact, convenient for container transportation.
Product Parameters

Item	Unit	Parameters
Overall length	mm	8520
Overall width	mm	2300
Overall height	mm	2400
Wheelbase	mm	2500
Max. working height	m	20.63
Max. platform height	m	18.63
Max. working range	m	12.08
Max. carrying weight	kg	256(unlimited)/350(limited)
Scope of luffing of No. 1 arm	°	0~+72
Scope of luffing of Boom No.2	°	0~+73
Crank arm luffing range	°	-64~70
Slewing angle of turntable	°	360
Max. Tail swing	mm	0.54
Dimension of platform	mm	1830×760×1150
Slewing angle of platform	°	160
Overall weight	kg	9900
Max. traveling speed	km/h	5.5
Min. turning radius	m	5.0
Min. ground clearance	mm	330
Max. gradeability	%	45
Specification of tire	/	355/55D625
Engine model	/	YCF3050-T302
Engine rated power	kW/(r/min)	36.8/(2400)

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
