410*315*130mm Market Box Plastic Injection Thin-Wall Crate Container Mould

Product Description

Product Description

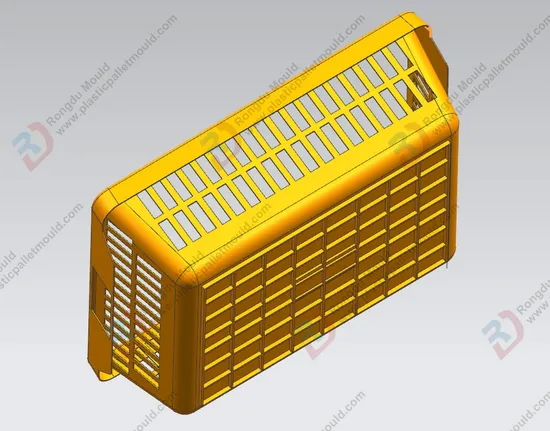

Product Name	Thin-Wall Crate Container Mould
Product Size	410*315*130mm
Product Weight	1.8KG
Cavity Number	Single Cavity
Plastic	HDPE,PP
Design Program	NX(UG), Auto CAD, Solid Works

Mould Description

Mould Size	930*860*580mm
Mould Cavity	Single Cavity
Mould Steel for Cor/cav	Nitrided & Heat-Treated & Hardened Steel HP20,H718,2738
Mould Steel for Slider/Insert Block	Nitrided & Heat-Treated & Hardened Steel HP20,H718,2738
Mould Steel for Basement	Nitrided & Heat-Treated & Hardened Steel S50C, S45C
Mould Raw Material Treatment	Nitridation, Quencher, Heat-Treated, Pre-Hardening

Injection System	Hot Runner
Gate Type	Pin-Point Gate
Hot Runner System	YUDO, Mold Master, Chinese Brand
Cooling System	Beryllium-Bronze Insert & Water Cooling
Ejection System	Stripper
Mould Surface Treatment	Texture or High Gloss Polishing
Hydraulic Slider	JUNFAN made in Taiwan
Mould Spare Part	DME or HASCO Standard
Mould Tooling Tolerance	±0.1mm
Mould Cycle Time	60S
Mould Life	500K shoots
Mould Guarantee	1 year

Hot Sales


https://cnrongdu.en.made-in-china.com/product-group/FeMGZwOrPPho/Household-Mould-Series-catalog-1.html
Mould Delivery Description

Mould for T1	45 days
Mould Deliver Time	50 days
Mould Installation	Fixed
Mould HS CODE	8480719090
Package	Wooden Case, mould would be Fixed inside
Transportation	By Air or By Sea
Payment	T/T, CIF

Company Profile
1. Background
Rongdu Mould is one of the Pioneer for plastic injection mould manufacturer. The Originator of us have making mould since 1985 year and accumulated abundant experiences. So we are specialized for manufacturing all kinds of plastic injection mould, especially for Crate Mould, PLASTIC PALLET MOULD, Plastic Chair Mould, Industrial Waste Bin Mould, Plastic Warehouse Mould etc.
Rongdu could manufacturer more than 600 sets of plastic mould annually, including 50 sets of CRATE MOULD, like Foldable Plastic injection Crate mould, Vegetable Plastic injection Crate mould, Storage Plastic injection Crate mould, Plastic injection Milk Crate mould etc.
"Making Mould More Valuable " is our final achievement. We focus on the MOULD QUALITY & DELIVERY TIME, providing stable mould within shortly time for each customer. So Rongdu Mould won good reputations from our old regular customer, and become one of leading for PALLET MOULD MANUFACTURER.
2.Advantages
A. Rongdu have Strong Design Team
For every new mould project, we would have a meeting to discuss all detail information, After product design will be confirmed, we would make the mould design and Mold Main Flow Analysis, in order to give customer reasonable suggestions and find best solution.
B. Rongdu have strict Mould Testing Standards
a. We would test every mould raw material, ensure the mould raw material quality.
b. We would checkout the mould Tooling processing, in order to make the each part of the mould could have precising dimension.
c. Our Assemble Mould Worker have more than 10 years working experience, we are familiar with all details.
C. Rongdu have Fast Mould Delivery Ability
Mould prompt be shipment is our most advantage, we take high attention and responsibility for customer demand, shipping each set mould timely to customer country.
3.Service
Rongdu mould not only sale the mould to customer, we pay highly attention Pre- & after- service. We would discuss with customer together, like product structure, analysis demould feasibility, analysis mould main flow. And we would have a meeting before the mould manufacturing, in order to support more valuable suggestions for our customer.
FAQ
-What Products Can You Provide?
Rongdu mainly manufacture:
1111 Single-sided Nested Pallet Mold with Nine-leg ; 1210 Single-sided Nested Pallet Mold with Nine-leg ; 1210 Single-sided Grid Pallet Mold with Nine-leg on bottom;
1210 Single-sided Flat Pallet Mold with Nine-leg ; 1010 Double-sided Grid Skid type Pallet Mold; 1111 Double-sided Grid Window type Pallet Mold;
1111 Double-sided Grid Skid type Pallet Mold; 1210 Grid Skid type Pallet Mold; 1210 Single-sided Grid Pallet Mold;
1210 Single-sided Flat bottom Skid type Pallet mold; 1080 Window type Pallet Mold; 1080 Grid Skid type Pallet Mold;
1212 Grid Window Pallet Mold; 1311 Grid Skid with ten Steel-Insert Pallet Mold; 1311 Double-sided Grid Pallet Mold;
1412 Double-Sided Grid Pallet Mold; 1412 Double Flat Pallet mold; 1513 Double-sided Grid Pallet Mold; 1513 Double-sided Flat Pallet Mold, etc.;
5L, 15L Medical Garbage Mold; 30L, 50L, 100L, 120L, 240L, 360L, 600L Industrial Garbage Mold; 40L Two-Color sorting Garbage Mold etc. ;
Fruit and Vegetable Crate mold; Bread Bucket mold; Clothing collection Container Mold and other Turnover Box Mold; Large Pallet Box Mold.
-How Long Can I Get The Feedbacks After We Sent The Inquiry?
We will reply you within 24 hours in working day.
-What Application Fields Are Your Products Mainly Involved In?
Plastic pallets are suitable for chemical, petrochemical, food, aquatic products, feed, clothing, making, shoes, electronics, electrical appliances, port, dock, catering, bio-pharmaceutical, mechanical hardware, automobile manufacturing, petrochemical, stereo storage, logistics and transportation, warehouse handling, storage shelves, auto parts, beer and beverage, textile printing and dyeing, printing and packaging, logistics station and other industries.
-Can You Make Customized Products?
Yes, we mainly make customized products. We develop and produce products based on drawings or samples provided by customers.
-What Is The Production Capacity Of Your Company?
We have our own production flow from the procurement of steel preparations to five-axis milling machine, CNC tooling machine, lathe machine, fine carving machine, electric discharging machine, graphiting machine, slow wiring machine, wire cutting machine, etc., and then to mold installation.
-What Is The Payment Method?
We would confirm the transaction method with you, we generally adopt the FOB method. We usually pay 50% of the advance payment first, and then pay the balance before shipping.

---
