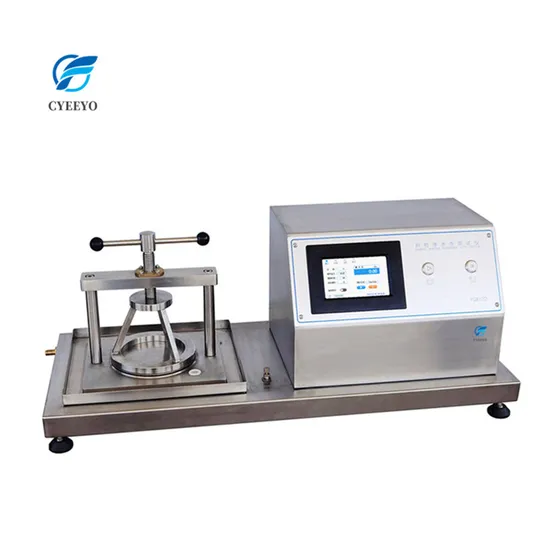

Textile Laboratory Fabric Water Permeability Tester Testing

Product Description

textile laboratory Fabric Water Permeability Tester testing
Product Description
Used for testing the water permeability of compact fabrics, including canvas, coated fabrics, cover cloth, rainproof clothing fabrics and geotextile materials, etc.

Standard
GB/T4744 FZ/T01004 AATCC 127 DIN 53886 JIS L1092

Testing mode
Turbocharged;
leakage water method

specification

model	Testing range	accuracy	Water tank lifting speed	Area of specimen gripholder
-5	500pa-50kpa	0.2%F.S	1kpa-20kpa	100cm2
-20	500pa-200kpa		1kpa-30kpa
-50	5kpa-500kpa		1kpa-100kpa	7.8cm2 (optional)
-100	order

Technical parameters
1.Power source:Ac 220V±10% 50HZ 100W
2.External dimension:550×400×500mm
3.Weight:50kg

Used for testing the water permeability of compact fabrics, including canvas, coated fabrics, cover cloth, rainproof clothing fabrics and geotextile materials, etc.

Standard
GB/T4744 FZ/T01004 AATCC 127 DIN 53886 JIS L1092

Testing mode
Turbocharged;
leakage water method

specification

model	Testing range	accuracy	Water tank lifting speed	Area of specimen gripholder
-5	500pa-50kpa	0.2%F.S	1kpa-20kpa	100cm2
-20	500pa-200kpa		1kpa-30kpa
-50	5kpa-500kpa		1kpa-100kpa	7.8cm2 (optional)
-100	order

Technical parameters
1.Power source:Ac 220V±10% 50HZ 100W
2.External dimension:550×400×500mm
3.Weight:50kg
