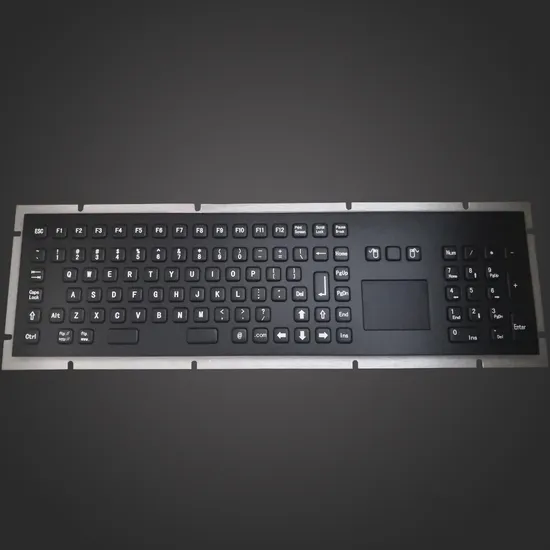

Vandal-Proof Waterproof Industrial Rugged Titanium-Plating-Black Backlight Metal Industrial Keyboard with Touchpad

Product Description

Product Description
description
Product description: This stainless steel keyboard is a general standard keyboard, 104 keys + trackball (touch screen optional). Installation size 502mm*159mm, imported 304 stainless steel 4# brushed panel. The keys are 14*14mm standard 304 stainless steel cap keys. Under the panel, the silicone elastomer + conductive silicone provides touch elasticity and conductive contact. This keyboard can be installed upwards
brand: DSP
Model: PC-701TP-B
Place of Origin: Guangdong, China
Specifications: Installation size 502mm*159mm
Scope of use: industrial equipment, industrial control equipment, medical equipment, self-service terminals, self-service information kiosks, telecommunication inquiry machines, intelligent equipment, self-service multimedia machines, instrumentation, security equipment, etc.
Interface: USB or PS2
Material: imported 304 stainless steel
Button life: more than 10 million times
Switch Mode: Conductive Silicone
Whether to customize: can be customized
Number of buttons: 104 (excluding mouse buttons)
Support system: Windows all series, Linux and Unix
Key stroke: not less than 1mm
Button pressure: 0.8-1.6 (N)
Product features: waterproof, dustproof, anti-riot, anti-rust, laser engraving or chemical corrosion, anti-fall off
Environmental adaptability: Protection level: IP65, working temperature: -25ºC~+70ºC Relative humidity: 30%~90%RH
Storage temperature: -30ºC~+70ºC Relative humidity: 20%~95%RH (no condensation) Atmospheric pressure: 60~106Kpa
Support system: all series of Windows, Linux and Unix, Android, Kylin

Size	Front panel: 478*135mm
Main Feature	1.Metal keyboard with integrated touchpad, right and left mouse buttons 2.Dustproof, Water proof, Vandalism resistance 3.laser engraved legends for excellent durability 4.Can be cleaned with soapy water, disinfectant or other cleaning agents
Number of Keys	104+3 keys
keyswitch lifespan	More than 5 million of operations
Key Trip	2mm
Mounting style	Rear Panel Mount
Supply Voltage	+5V DC +/-5%
Protection Level	IP65(front panel)
Operating Temperature	-40 ~+70ºC
Storage Temperature	-40 ~ +80ºC
MTTR	<30min
OS	Compatible with WINDOWS98/ME/2000/XP .etc
Certification	CE, RoHS, FCC approval
Warranty	1 year limited warranty, can be upgrade longer
Application	Self service kiosk, Industrial PC system, Medical & Food industry, Gaming machine & Vending Machine, Navigation & aviation, CNC machine and other factory equipment.
All languages version and interface are available on request

Application scenario Industrial control: industrial equipment, self-service ticket machines, parking lots, outdoor charging piles, self-service information kiosks, telecommunication inquiry machines, load storage machines, self-service multimedia machines, instrumentation, security access control, etc.
Certifications


Packaging & Shipping Packing & Delivery







FAQ Q1) Is it safe on the payment for me as we are the first cooperation?
A:We can do the trade assurance on Made-In-China, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q2) Can you print the logo on Metal keyboard or draw the artwork?
A:We can print your own logo on the keyboard, and we can draw the artworks for you, but we need the proto logo.
Q3) What should i provide to get a quotation? When can I get the quotation?
A:We will send you quotation within 24 hours after you tell us the size, quantity, special requirement and send us the artwork if possible.
Q4) Can you do a sample for me?
A: Yes, we can make you a sample for your approval, but there is a sample charge, which will be returned after it reaches a certain quantity.
Q5) What is the shipping way you do for the Metal keyboard?
A:We will send it by express delivery or air for small order; will send it by sea if it is a large quantity.
Q6) Are you factory ?
A:Yes ! Deshipu is a professional manufacture in metal keyboards for more than 10 years. Our Innovative design and superior quality make DAVO popular all over the world.
Q7) Do you Support customize the keypad language & layout ?
A:We support FREE language & Layout customization for small orders !
Q8) Can you customize the surface and program of your product according to my requirements?
A:Yes. You need to provide the surface draft !
Q9) Can you change the size of your keyboard panel?
A:Yes. We can customize it according to your needs !
Q10)Is your keyboard waterproof ?
A:We do have waterproof metal keyboards with degree IP65-IP68.
Start send us an inquiry with your request, we will recommend you the right model.

---
