| US$2,500.00 | 1 Set (MOQ) |

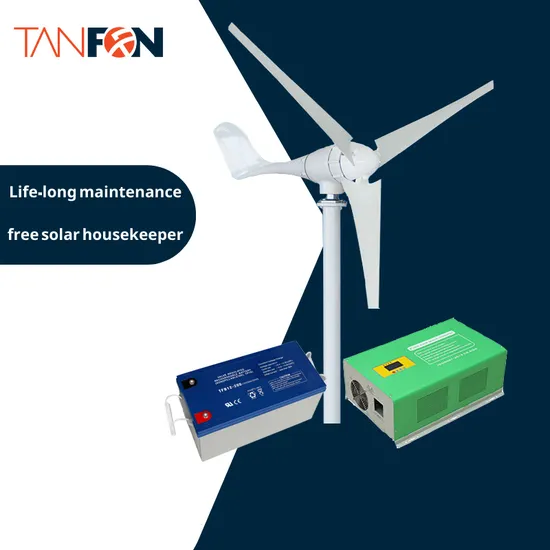

| Wind Turbine And Guy Cable Tower >3years warranty,20year use life > Advantage: light weight, small volume> Starting wind speed:3m/s> Rated wind speed:10m/s> Security wind speed:40m/s >Rated speed:310 r/m | |
| Solar Inverter > 2 years warranty > With built-in charge controller > Pure sine wave inverter > Use copper transformer; > Bypass function with AC charger; > Output: 220V 380V 415V 50/60HZ | |
| Battery > Full sealed gel battery > Service life:6-8 years > 12V 200AH | |
Hybrid Controller >DC 96V input ;MPPT intelligent control>Protection Function: Solar reverse charge >protection , Solar reverse connection protection, >Battery-over-charge-protection >Battery-reverse connection protection | |
| Mounting structure > Slope Roof or Flat roof or Ground (option) > Including complete fittings > Wind load:55 m/s,snow load:1.5 kg/m2 > Structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement ) |
| Model | FD-50 | FD-100 | |
| Rated power | 50W | 100W | |
| Generator detail | |||
| Starting wind speed | 3m/s | 3m/s | |
| Cut-in wind speed | 3.5m/s | 3.5m/s | |
| Rated wind speed | 12m/s | 12m/s | |
| Security wind speed | 45m/s | 45m/s | |
| Rated DC voltage | 12V/24V | 12V/24V | |
| Rated speed | 1050 r/m | 860r/m | |
| Rotor diameter | 830mm | 1050mm | |
| Rated output AC voltage | 220V/50Hz(110v/60Hz) | ||
| Protection | Electromagnetic torque control and electricity brake | ||
| Type | 3phases permanent magnetism synchronization generator | ||
| Material | |||
| Blade material | Extra-strong and tenacious engineering plastics | ||
| Packing material | Carton box and foam material | ||
| Package | |||
| Packing dimension | 615*260*210 mm | 615*260*210 mm | |
| N. W& G. W(kg) | 2.6/3.2kg | 2.8/3.5 kg | |
| Model | FD-10000 |
| Rated power | 10000W |
| Starting wind speed | 3m/s |
| Cut-in wind speed | 4m/s |
| Rated wind speed | 13m/s |
| Security wind speed | 60m/s |
| Rated DC voltage | 192V |
| Rated speed | 185 r/m |
| Rotor diameter | 7210mm |
| Protection | Electromagnetic torque control and electricity brake |
| Type | 3phase permanent magnetism synchronization generator |
| Blade material | Extra-strong fiber glass |
| Packing material | Plywood box and foam material |
| Packing dimension | 1160*600*740mm |
| N.W&G.W(kg) | 645/686kg |
| Model | FD-300 |
| Rated power | 300W |
| Starting wind speed | 2m/s |
| Cut-in wind speed | 3m/s |
| Rated wind speed | 12m/s |
| Security wind speed | 40m/s |
| Rated DC voltage | 12V/24V(optional) |
| Rated speed | 900 r/m |
| Rotor diameter | 1140mm |
| Protection | Electromagnetic torque control and electricity brake |
| Type | 3phases permanent magnetism generator |
| Blade material | Extra-strong and tenacious engineering plastics |
| Packing material | Carton box and foam material |
| Packing dimension | 1110*580*240 mm |
| N.W&G.W(kg) | 7/10.5 kg |
