Automatic Glass Machinery Factory Automatic Glass Process

Product Description

automatic glass machinery factory automatic glass process
1.Product Introduction of automatic glass machinery factory automatic glass process
Factory Sealing Machine Sealing Robot for Insulating Glass is much more and more popular in the further glass processing field. Generally, our insulating glass sealing robot has 3 sections, and we keep one section for storing sealed glasses. Our sealing robot not only working on double glass, structural glass sealing, but also working on the triple glasses glazing.
When sealing glasses, the corner is the most weak place, but our sealing robot can coating sealant fully without bubbles, no need manual trimming.
And we adopts the Yaskawa control system. even the cost is higher, anyway the performace is high and steady.
2.Technical Parameter of automatic glass machinery factory automatic glass process

Model	Glass process Max size-mm	Glass process Max size-mm	Glass process Thickness -mm	Glass washing Speed-m/min	Glass transport Speed-m/min	Double Glazing Glass thickness	Power supply -KW	Space size L*W*H
YH-ZKX- 1800*2400	1800*2400	1800*2400	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 26kw	18m *2m *2.85m
YH-ZKX- 2000*2500	2000*2500	2000*2500	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 32kw	19.5m *2.2m *3.05m
YH-ZKX- 2000*3000	2000*3000	2000*3000	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 38kw	22.8m *2.2m *3.05m
YH-ZKX- 2500*3100	2450*3150	2450*3150	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 38kw	22.8m *2.3m *3.55m
YH-ZKX- 2500*4000	2450*3950	2450*3950	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 42kw	29m *2.3m *3.55m
YH-ZKX- 2700*4000	2750*3950	2750*3950	3-12	0-12	45	10-48 mm	3P 380V/1P +N220V 50Hz, 42kw	29m *2.7m *3.70m

Notes: a. if you have special glass size, please note us, we can design the line for you;
b. If you have special power supply, please note us earlier as well, we can specially make the line for you.
Factory Sealing Machine Sealing Robot for Insulating Glass Certificates

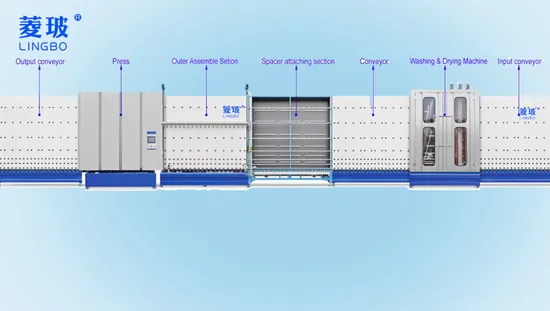

3.Products Feature of automatic glass machinery factory automatic glass process

WASHING MACHINE Washing Glass Thickness: 3-12mm Washing Speed: 0-12 m/min	ADVANTAGES: The whole washing section are made of stainless steel; Converter driving for Low-E brush rotatory speed; Automatically distinguish the coating side of coated glass and Low-E glass; Upper part of washing box use the bevel gear connects; Washing machine adopts oil less bearing.
SPACER ATTACHING SECTION	ADVANTAGES: Automatic detecting system for spacer frame; Automatic detecting system for glass; Hollowing out design, adopts the matte lights and The light tubes are controlled by two stages, saving energy; The aluminum spacer positioning adopts special design, accurate positioning, automatically inject the height and thickness of glass, saving labor; The backrest wheel adopts the inlaid design and the bearing is inside
OUTER ASSEMBLE SECTION	ADVANTAGES: Outer assembling glass, speed is fast; Adopts the Imported cylinder and photoelectric switch, make accurate positioning; can do three glass with two chambers; Special weight balancing system to make sure the workers and glass safety. Guideway, slide block, slide wheels adopts CNC processing.
PRESS MACHINE SECTION	ADVANTAGES: Adopts accurate positioning, make sure glasses press accurately; The plate of press machine adopts the CNC processing; The press open and close will adopts the air pump.
CONVERYOR SECTION	ADVANTAGES: Transmission wheel, the special design structure makes transmission wheel more durable; The conveyor section adopts the inlaid roller to facilitate the large glass delivery; The large frame uses 50mm × 100mm square standard steel tube, the equipment is more stable, enhance the stability of equipment operation. Can do three-sided glass (OPTIONAL).

4.Product Configuration Sheet for automatic glass machinery factory automatic glass process

PROJECT NAME	BRAND	COUNTRY
Programmable PLC	OMRON	JAPAN
Frequency converter	SIEMENS	GERMANY
AC contactor	LS	KOREA
Low-E Glass Recognizer	OPTEX	JAPAN
Intermediate relay	HONEYWELL	USA
Breaker	LS	KOREA
Photoelectric switch	OPTEX	JAPAN
Proximity Switch	AUTONICS	KOREA
Pneumatic Solenoid valve	AIRTAC	TAIWAN
Pneumatic cylinder	AIRTAC	TAIWAN

5.FAQ on automatic glass machinery factory automatic glass process
Q: Are you new to this filed?
A: We are manufacturing these machines since 2014, and we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: What is the service can you supply?
A: 1. Machine function introduction and quotation reply within 24 hours.
2.Industrial design or workshop layout design reply within 48 hours.
3.Customization feasibility reply within 72 hours.
4.Engineer onsite installation and operation guide if necessary.
5.Machine operation and maintenance guide service after sells.
6.Supply all the parts of the machine in whole lifetime.
7.PLC control system can be update and repaired in machine's whole lifetime!
8.Spare parts supplied in cost prices for all the clients.
6. About US
7. What's the guarantee for automatic glass machinery factory automatic glass process?
1. Our guarantee for 12 months.
2. 24 hour's technical support by email or calling.
3. English manual and video teaching.
4. We will provide the consumable parts at an agency price.
5. 24 hours on line service each day, free technical support.
8. Our Customers and Exhibitions attended in these two years
9. The Ability to Serve you on automatic glass machinery factory automatic glass process

---
