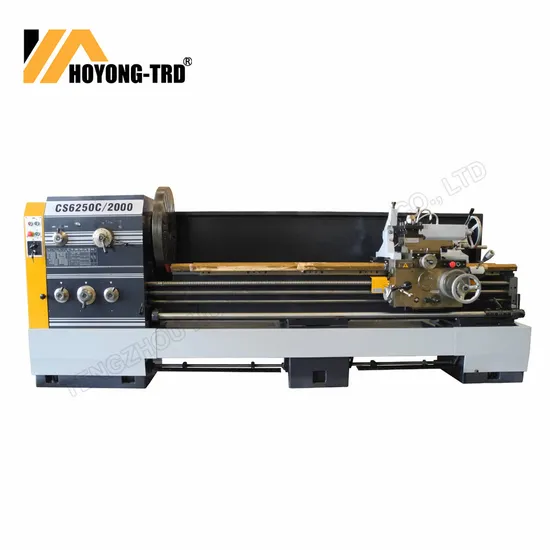

Horizontal Lathe Machine CS6266c

US$8,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

CS6250C

Type

Horizontal Lathe

Processing Accessory

Metal

Guide Rail

Horizontal Guide Rail

Tool Holder

4 Way Tool Post

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Max.Swing Over Bed

500mm

Swing Over Cross Slide

300mm

Spindle Bore

105mm

Spindle Taper

Mt6

Transport Package

Plywood Case

Specification

3200kgs

Trademark

HOYONG-TRD

Origin

Shandong, China

HS Code

84581900

Production Capacity

10 PCS/Month

Product Description

GAP BED LATHE FEATURES:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
FEATURES:

SPECIFICATIONS		UNIT	CS6140	CS6150	CS6166	CS6150C	CS6166C
			CS6240	CS6250	CS6266	CS6250C	CS6266C
			CS6140B	CS6150B	CS6166B
			CS6240B	CS6250B	CS6266B
Capacity	Max. swing dia. over bed	mm	400	500	660	500	660
	Max. swing dia.over cross slide	mm	200	300	420	300	420
	Max. swing dia.in gap	mm	630	710	870	710	870
	Max. workpiece length	mm	750/1000/1500/2000/3000
	Max.turning length		700/950/1450/1950/2950
Spindle	Spindle bore diameter	mm	52 82 (B series) 105(C series)
	Taper of spindle bore		MT6 90 1:20 (B series) 113(C series)
	Type of spindle nose	no	ISO 702/III NO.6 bayonet lock, ISO 702/II NO.8 com-lock type(B&C series)
	Spindle speed	rpm	24 steps 9-1600		12 steps 36-1600
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	75
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25X25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320
	X feed range	mm/r	93 kinds 0.012-2.73		65 kinds 0.027-1.07
	Z feed range	mm/r	93 kinds 0.028-6.43		65 kinds 0.63-2.52
	Metric threads	mm	48 kinds 0.5-224		22 kinds 1-14
	Inch threads	t.p.i	48 kinds 72-1/4		25 kinds 28-2
	Module threads	mm	42 kinds 0.5-112		18 kinds 0.5-7
	Diametric pitch threads	t.p.i.	42 kinds 56-1/4		24 kinds 56-4
Dimensions		mm	2382/2632/3132/3632/4632
			975
			1230	1270	1350	1270	1450
Weight		Kg	1975/2050/2250/2450/2850	2050/2100/2300/2500/2900	2150/2200/2400/2600/3000	2050/2100/2300/2500/2900	2150/2200/2400/2600/3000
