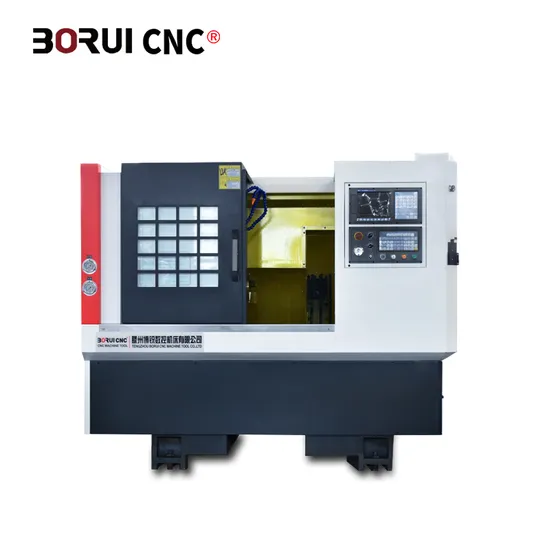

High Precision CNC Turning Center 45 Degree Slant Bed Lathe Tck6340 Tck6350 Small CNC Metal Lathe

Product Description

TCK6340 Heavy Duty Hobby Conventional Horizontal Metal Process Slant Bed CNC Lathe Machine
Product Description
CNC Lathe Uses:
This machine is mainly used for processing various shaft , disk parts , turning can be all kinds of screw thread , arc , cone ,and plane of internal and external surface , can satisfy the ferrous and non-ferous metals the speed requirement of high-speed chip , Suitable for cars , motorcycles, electronics , aerospace , military industry and other industries to high efficiency , large quantity and high precision of parts processing . Machining precision can reach level 7 .
CNC Lathe Feature :
1.45 degrees slant bed CNC lathe;
2.Higher accuracy Taiwan linear guideways;
3.Chip conveying capacity is large and convenient , customer could choose chip conveying in the right or in the back;
4.Spindle unit has two types , the heavy cutting type and the high speed type. Heavy type cutting unit is suitable for bearing and gear processing , High speed unit is suitable for the high speed and high precision processing .Customers could choose any type of them;
5.Screw pre-stretching structure;
6.Gang type tool standard;
7.Optional turret.
Technical Parameter

Specification	Unit	TCK6332	TCK6340(S)	TCK6350
Max.Swing Over Bed	mm	320	400	520
Swing Over Cross Slide	mm	110	140	220
Max.Processing Length	mm	250	200(400) Gang Tool Post	410 Gang Tool Post
			100(300) Electric Tool Post	330 Electric Tool Post
X/Z Axis Travel	mm	300/250	400/300(500)	500/500
Spindle Unit	mm	140	140/170	200
Spindle Nose		A2-5	A2-5	A2-6
Spindle Bore	mm	48	48/56	66
Bar Capacity	mm	40	40/45	55
Max.Spindle Speed	rpm	4000	4000	3000
Chuck Size	in	6	6/8	10
Spindle Motor	Kw	3.7	3.7/5.5	7.5/11
X/Z Axis Repeatability	mm	±0.003	±0.003	±0.003
X/Z Axis Feed Motor Torque	N.m	4/6	6/6	7.5/7.5
X/Z Rapid Traverse	m/min	15/15	18/15(18/18)	18/18
Turret type		Gang Tool Post	Gang Tool Post	Gang Tool Post
Cutting Tool Size	mm	20*20	20*20	25*25
Guide Way Type		45° Guide Way	45° Guide Way	45° Guide Way
Total Power Capacity	KVA	9/11	9/11	14/18
Dimension (L*W*H)	mm	1920*1350*1700	2200(2390)*1530*1780	2500*1620*1890
N.W	KG	2580/2860	2650/2930	2900

Details Display
Company Profile

Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) Contact us

---
