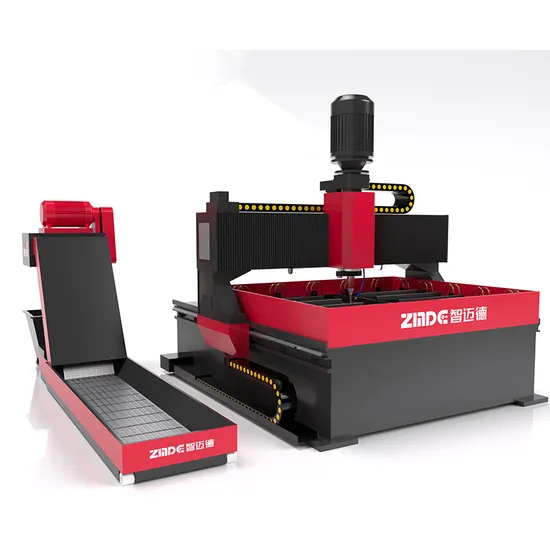

Zmde High Precision CNC Steel Beam Plate Drilling Machine for Industrial Plants

Product Description

ZMDE High Precision CNC Steel Beam Plate Drilling Machine for Industrial Plants
>Efficient and Cost-Effective Equipment <
1. Constructed from solid materials, this machine boasts a low failure rate, significantly reducing maintenance costs. Key components such as ball screws, linear guide vices, hydraulic and electrical parts, servo motors, and frequency converters are sourced from industry-leading brands.
2. The CRT display facilitates automatic chip removal, cutting down on manual cleaning time and associated costs.
3. High precision equipment ensures a high qualification rate of workpieces, thereby minimizing consumable costs.
>Simple Operation, Enhanced Productivity <
1. The intuitive human-machine interface provides clear visuals and generates automatic machining programs, making operation straightforward.
2. With CNC and PLC control, precise positioning is guaranteed.
3. Hydraulic clamps secure workpieces, and the foot switch operation is both convenient and labor-saving.
4. The table features 12 rapid hydraulic clamps capable of clamping four sets of workpieces simultaneously.
5. Clamping smaller workpieces at the four corners of the table significantly shortens production preparation cycles and boosts efficiency.
6. By clamping smaller workpieces at table corners, the production preparation period is notably reduced, enhancing overall productivity.
> Guaranteed Quality, Versatile Applications <
1. Crucial components like the gantry, column, and table are made from robust materials, with the main machine weighing up to 6300kg.
2. Suitable for a wide range of industries, this system is essential for connecting plate processing tasks.
3. Capable of handling a broad spectrum of drilling diameters, from 12mm to 50mm.
> Versatile for Various Production Scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Perfect for small-batch production of diverse shapes such as rectangular, round flange, or polygonal plates; it can process two or four different specifications simultaneously.
3. Facilitates stacked production of multiple layers of thinner sheets, with stacked drilling up to a maximum thickness of 100mm.
4. Automated software processes start and end points, enabling the drilling of through holes, blind holes, step holes, and hole-end chamfering.
> Advanced Production Process Automation <
1. Integrated line board design ensures a high degree of automation, with automatic positioning based on the drilling program.
2. Automatically adjusts the optimal feeding volume according to different hole diameters.
3. Capable of automatic and continuous processing of large hole diameters, achieving one-time processing and forming.
4. Features an automatic chip removal function for seamless operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Established in 2013, ZMDE Co., Ltd. stands as a beacon of innovation in the realm of intelligent equipment for assembly building. As a high-tech enterprise, we are proud to hold the title of a national 'small giant' enterprise, specializing in the development, manufacturing, sales, and service of cutting-edge technologies. Our core industry revolves around the creation of intelligent industrial mother machines for steel structure assembly and the advancement of Industry IoT solutions.intelligent control systems for two critical sectors.
Our headquarters, strategically situated in Lingang New Area, Pudong New District, Shanghai, spans a remarkable 32,000 square meters. It houses our prestigious Research Institute of Artificial Intelligence for Assembled Buildings, which is dedicated to pioneering high-end technologies in AI for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT). This facility is the nerve center for our company's management and R&D activities.
Our Shandong base, located in Weicheng District, Weifang City, is a hub of innovation for intelligent industrial mother machines. This facility focuses on the research, development, and production of advanced intelligent machinery for steel beams and walls of assembled buildings, pushing the boundaries of efficiency and precision in construction technology.mother machines that redefine the construction of walls in assembled buildings.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
