4.0 Cbm Complex Self-Loading Mobile Construction Truck Self Loading Concrete Mixer Truck

Product Description

We support customized mixing trucks with various quantities, and they will provide you with absolute advantages in terms of quality and price, making your application moreextensive.

Equipment model	XY-26	Gear position	4 forward and 4 backward
External dimensions	7100 * 2750 * 4100	Fuel tank	75L
wheelbase	2800 mm	Total capacity of hydraulic system	75 L
curb weight	7000 kg	engine oil	16L
Drive form	Torque converter	Water tank capacity	500L
Maximum speed	30km/h	Water supply method	Time relay
Maximum climbing gradient	30°	Geometric capacity of drum	4000 L
Minimum ground clearance	380mm	Drum rotation speed	13 r/ min
Engine model	4102 T	Concrete production	2.6 m³
Rated power	78KW	Transmission model	280 power shift gearbox

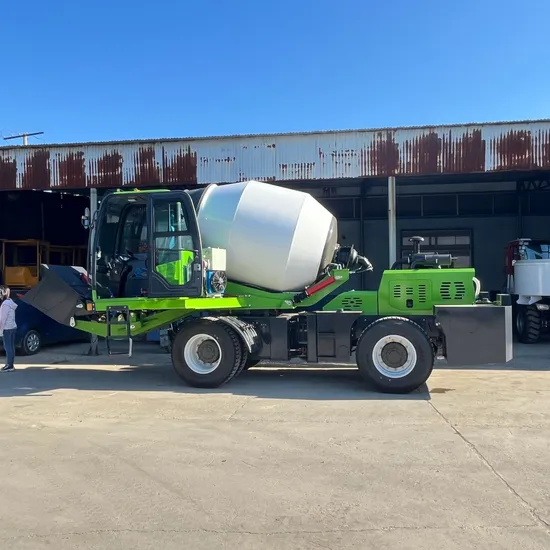

lt adopts a self-loading design, which can realize automatic loading, weighing, mixing, and discharging. It can rotate the material for unloading. The tank and cab can realie synchronous steering, making on-site construction very convenient.

Equipment model	XY-35A	Gear position	4 forward and 4 backward
wheelbase	2900 mm	Fuel tank	120L
External dimensions	7730*2700*4180 mm	Total capacity of hydraulic system	120L
curb weight	7900 kg	engine oil	16L
Drive form	Torque converter	Drum rotation speed	620L
Maximum speed	30km/h	Actual discharge	Time relay
Maximum climbing gradient	30°	Geometric capacity of drum	4740 L
Minimum ground clearance	380 mm	Drum rotation speed	18-21 r/min
Engine model	4105 T	Concrete production	3.5m³/ tank
Rated power	85 KW	Transmission model	280 power shift gearbox

Yantai Xinyu concrete mixer truck provides you with 24-hour professional after-sales service. No matter what problems you encounter, please contact us to solve them for you.

Equipment model	XY-40	Gear position	4 forward and 4 backward
wheelbase	2480 mm	Fuel tank	230L
External dimensions	7640*2870*4750 mm	Total capacity of hydraulic system	170L
curb weight	9000 kg	engine oil	16L
Drive form	Torque converter	Actual discharge	Time relay
Maximum speed	35km/h	Geometric capacity of drum	6000L
Maximum climbing gradient	45°	Drum rotation speed	18-21 r/min
Minimum ground clearance	330 mm	Drum rotation speed	780L
Engine model	4108 T	Concrete production	4.0 m³/ tank
Rated power	91 KW	Transmission model	Zl-315 power shift gearbox

Equipment model	XY-55	Gear position	4 forward and 4 backward
External dimensions	8450*3100*4580 mm	Fuel tank	160L
wheelbase	3350 mm	Total capacity of hydraulic system	160L
curb weight	11200 kg	engine oil	20L
Drive form	Torque converter	Reducer	HJ80-43
Maximum speed	42km/h	Drum rotation speed	860L
Maximum climbing gradient	45°	Actual discharge	Time relay
Minimum turning radius	6200 mm	Geometric capacity of drum	7800 L
Minimum ground clearance	380 mm	Drum rotation speed	20 r/min
Engine model	6105 T	Concrete production	5.5m³/ tank
Rated power	92-132KW	Transmission model	Zl-280 power shift gearbox

FAQ :
1. What Certificate do you have?
Yantai Xinyu workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
Yantai Xinyuwill try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TDER
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.

---
