Single and Double Disk PPR Pipe Winding/Coil Machine PE Pipe Winding Machine

Product Description

Single and Double Disk PPR Pipe Winding/Coil Machine PE Pipe Winding Machine

Model	Pipe diameter	Outside diameter of coil	Coil width	Winding speed	Inner diameter of coil	Yorque motor
KWX-32 double stations	16-32	800-1280mm	200-370	1-20m/min	480-800mm	10N.M
KWX-63 double stations	32-63	1400-2000mm	360-560	1-20m/min	600-1200mm	25N.M
KWX-110 single station	63-110		700	0.5-5m/min	2500-3500mm	40N.M

Product Description
Specifications
soft pipe winder
soft hose winder
soft plastic pipe winding machine
pipe winding machine

Detailed Photos


Detailed Product Description

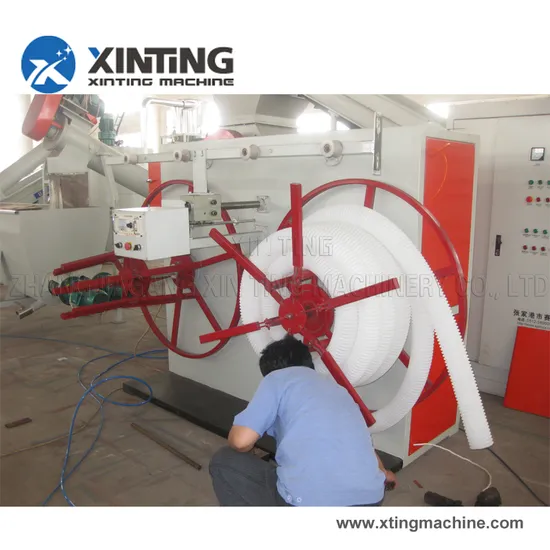

soft pipe winding machine/ soft hose winding/winding machine are used to coil soft PE, PEX-A,PVC braided pipes etc., it's a necessary part for producing soft plastic pipes.
Features:
1.double station can suitable for continuous pipe producing.
2.pneumaticly clamp and release
3. smooth rod strand oscillator can place the pipe tidily.
4. elaborately structure design, easy operation.
Main techinical standards:

model	SPS280	SPS400	SPS700	SPS1250
winding diameter	280mm	400mm	700mm	1250mm
winding speed	0.5-15m/min	0.5-15m/min	0.8-8m/min	0.8-5m/min
winding width	220mm	300mm	400mm	420mm
winded pipe specification	12-16mm	14-32mm	14-63mm	75-125mm
air pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
appearance size	2100x1000x1400mm	2500x1150x1450mm	4350x2100x2315mm	4500x2250x2300mm
weight	7000kg	1000kg	1500kg	4500kg

pipe winding machine hdpe plastic hollow spiral winding pipe making machinery


Application of large diameter hollow wall winding pipe machine :
At present, the sewage and drainage systems in the world still use the cement pipes. However, due to its instable chemical property and loose connection, it has become the principle cause for environment pollution. On the other hand, the cast iron pipes cannot be used any more for its disadvantages, such as the inconvenient construction and expensive cost. In recently years, the plastic pipes have been draw great attention and have become the substitute products for cement pipes and cast iron pipes. All these shows that the twisted large diameter plastic pipes have a great market potentiality.

Product Parameters

Main technical diameter & Configurations List:

Model	extruder		pipe range(mm)		max output capacity(kg/h)	total powder(kw)
	model	motor powder	ID(min)	OD(max)
ZKCR800	SJ65*30	45	200	800	200	150
	SJ45*30	15
ZKCR1200	SJ65*33	75	400	1200	350	210
	SJ45*33	30
ZKCR1800	SJ75*33	90	800	1800	450	320
	SJ65*30	45
ZKCR2600	SJ90*33	160	1600	2600	600	400
	SJ65*33	75

ZKCR3200	SJ120*33	250	2000	3200	750	550
	SJ75*33	90

No.	Item	Qty.
1	single screw extruder,model SJ65*33	1set
2	single screw extruder, SJ45*30(for melt welding material)	1set
3	extrusion die head for rectangular pipe	1set
4	die head for melt material	5pcs
5	vacuum tank	1set
6	cooling trough	1set
7	forming machine	1set
8	forming mold	1set
9	cutter	1set
10	stacker	1set

Photos:

---
