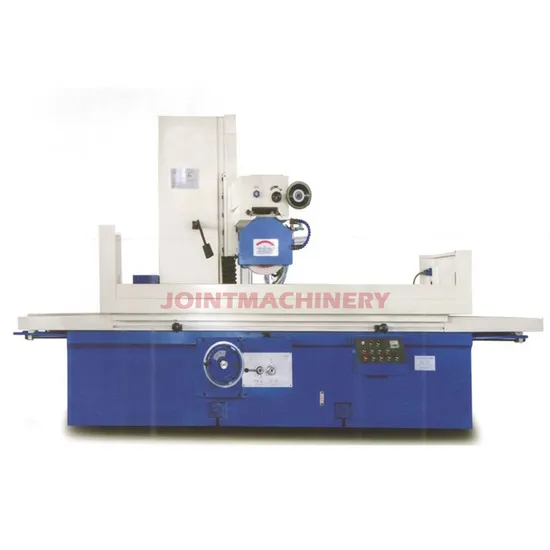

Hydraulic Drive Horizontal Shaft Rectangular Table Surface Grinding Machine M7132X16

Product Description

1. Expanding the work surface, the Advanced Surface Grinder allows you to grind larger workpieces with ease, enhancing versatility and efficiency.
2. Featuring a movable grinding head structure, the machine integrates the front and rear sections into a unified design, providing exceptional rigidity and stability for precise operations.
3. Both the longitudinal movement of the worktable and the lateral movement of the grinding head are hydraulically driven, offering stepless speed regulation. The lateral feeding can be customized as either manual or fully automated, providing flexibility and precision.
4. The grinder's vertical feed is manual, equipped with a quick lifting mechanism to significantly reduce labor intensity, enhancing user comfort and efficiency.
5. The grinding head's front end features a tapered sliding bearing, and the spindle is engineered for remarkable rigidity and precision. With increased motor power of 7.5kw, the machine performs strong and efficient grinding operations.
6. Designed for user-friendly operation, this machine tool runs smoothly with low noise, offering high grinding efficiency and outstanding performance, making it a top choice for precision tasks.
1. Precision Grinding Head
This manual grinding head is enhanced with a rapid lifting mechanism and a robust built-in motor. Designed for exceptional rigidity and precision, it guarantees superior grinding results, ensuring your operations achieve new heights of excellence.
2. Efficient Electromagnetic Chuck
The user-friendly electromagnetic chuck significantly boosts operational efficiency, allowing continuous usage exceeding 20 hours. It is an ideal choice for high-demand tasks, optimizing time management and productivity.
3. Premium Metal Hand Wheel
This high-precision metal feed handwheel offers effortless control, delivering an impressive accuracy level of 0.002MM. Its superior grinding model sets new benchmarks in precision engineering, ensuring top-tier performance.
4. Advanced Double V Guide Rail
The innovative double V guide rail, combined with a single V flat guide rail laterally and a hydraulic drive, assures extraordinary precision and reliability, enhancing the machine's consistent performance.
5. Durable Resin Sand Cast Iron Body
Expertly crafted resin sand cast iron body provides exceptional stability and strength. With artificial aging treatment, these castings guarantee dimensional accuracy, ensuring optimized finishing and precision for demanding applications.
Hydraulic Drive Horizontal Shaft Rectangular Table Surface Grinding Machine M7132x16

Model		Unit	M7130	M7132	M7132x16
Worktable size		mm	320*1000	320*1000	320*1600
Maximum grinding size		mm	320*1000*400	320*1000*400	320*1600*400
Longitudinal movement of worktable (hydraulic)		mm	200-1100	200-1700	200-1700
Worktable speed (stepless speed)		m/min	3-25	3-25	5-25
No. of T-slots on worktable		pcs	3	3	3
Width		mm	18	18	18
Worktable load (including electronic chuck)		kg	500	800	800
Electronic chuck size		mm	300*680	320*1000	320*800 (2pcs)
Grinding head transverse feed (stepless speed)
Continuous		mm/min	0.8-3	0.8-3	0.8-3
Intermittent		mm/pcs	3-30	3-30	3-30
Vertical handwheel minimum scale		mm	0.01	0.01	0.01
Vertical feed of grinding head per hand wheel rotation		mm	0.5	0.5	0.5
Grinding wheel size		mm	400*40*203	400*40*203	400*40*203
Total capacity of electrical equipment		kva	14	14	16
Grinding head motor
Power		kw	7.5	7.5	7.5
Speed		r/min	1440	1440	1440
Parallelism of machined surface to base surface		mm	300:0.008	300:0.008	300:0.008
Workpiece surface roughness		μm	Ra0.63	Ra0.63	Ra0.63
Machine tool dimensions		mm	3000*1675*2200	3000*1675*2100	5500*1675*2100
Packing size		mm	2610*1800*2450	2610*1800*2450	5100*1800*2450
Net weight		kg	3300	3300	4800
