Stainless Steel Ribbon Mixer for Continuous Food Powder Processing

Product Description

The Conical Screw Ribbon Mixers are renowned for their exceptional capabilities in mixing, stirring, and blending diverse materials such as powders, granular substances, slurries, and viscous liquids. Featuring an optional liquid spraying system, these mixers can be customized to meet user-specific requirements for operation under vacuum, pressurized, heated, or cooled conditions. This unparalleled versatility ensures that they fulfill the mixing and stirring demands of materials under a wide range of process conditions with utmost efficiency.
The Conical Screw Ribbon Mixers deliver robust mixing performance. During operation, materials adjacent to the container wall ascend, while those at the center descend, enabling a gentle yet comprehensive mixing of flowable substances. This dynamic process guarantees a high degree of uniform mixing of substantial material volumes within a remarkably short timeframe. The innovative design of the discharge mechanism ensures near-complete evacuation of material from the hopper, substantially minimizing material residue.
Product Features
1. Cantilever Shaft Structure, with the bearing ends isolated from the material for enhanced durability.
2. The minimal gap between the agitator blades and the container wall prevents material adhesion, ensuring efficient operation.
3. A standardized agitator drive box ensures stable operation of the equipment and reduces maintenance costs.
4. Easy-Cleaning : Designed for swift and thorough cleaning between batches.
5. Durable Construction : Engineered with robust materials for enduring reliability.
6. Wide Application : Versatile use across industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Equipment model	Total Volume (m³)	Loading Coefficient	Motor Power (kW)	Overall Dimensions (mm)	Equipment Weight (kg)
RX-DZH-0.06	0.06	0.4-0.6	1.5	φ630x1451	120
RX-DZH-0.1	0.1	0.4-0.6	2.2	φ715x1569	220
RX-DZH-0.3	0.3	0.4-0.6	2.2	φ920x1929	320
RX-DZH-0.5	0.5	0.4-0.6	4	φ1140x2327	410
RX-DZH-1	1	0.4-0.6	7.5	φ1480x2869	900
RX-DZH-1.5	1.5	0.4-0.6	11	φ1633x3140	1200
RX-DZH-2	2	0.4-0.6	11	φ1816x3489	1300
RX-DZH-3	3	0.4-0.6	15	φ2040x3760	2400
RX-DZH-4	4	0.4-0.6	18.5	φ2250x4425	2500
RX-DZH-6	6	0.4-0.6	22	φ2548x4940	2850
RX-DZH-8	8	0.4-0.6	30	φ2780x5360	4250
RX-DZH-10	10	0.4-0.6	37	φ3018x5815	5200
RX-DZH-12	12	0.4-0.6	45	φ3204x6100	5800
RX-DZH-15	15	0.4-0.6	55	φ3442x6540	6300

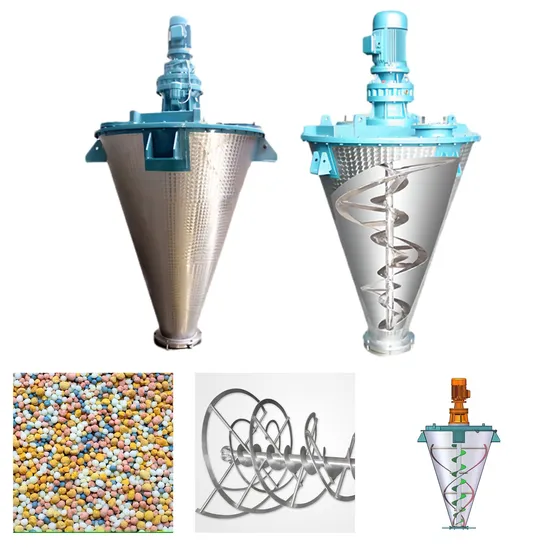

Product Display Product Structure Application
The Double Cone Mixer is applicable in various sectors, includingpowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry
.About Our Company Shijiazhuang Rongxin Technology Co., Ltd.
was established in 2007, headquartered in Shijiazhuang, the capital of Hebei Province. Specializing inthe design and provision of material handling automation systems, our company stands as a pioneer in the field, boasting numerous patents and honors, such as 'National High-Tech Enterprise' and 'Innovative Enterprise.'
Our main products encompass dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems. These are extensively employed in industries including metal materials, food processing, chemicals, pharmaceuticals, and new energy.We also own a state-of-the-art production facility with advanced manufacturing lines, ensuring the superior quality of our equipment. Company Certification
