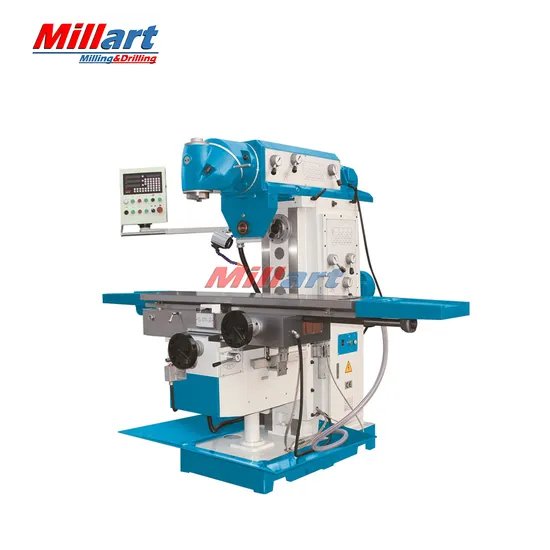

Knee Type Universal Milling Machine XL6436/XL6436c/XL6436cl Swivel Head Milling Machine

Product Description

Knee Type Universal Milling Machine XL6436/XL6436C/XL6436CL Swivel Head Milling Machine
Feature :
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Technical Parameter :

Model	Unit	XL6436	XL6436C	XL6436CL
Table size	mm	1325×360	1325×360	1600×360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed speed X axis	mm/min	30~750	30~750	30~750
Table feed speed Y axis	mm/min	20~500	20~500	20~500
Table feed speed Z axis	mm/min	15~375	15~375	15~375
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)	7:24 IS050 (H) 7:24 IS050 (V)	7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	550	550	550
Distance between spindle nose and table surface	mm	196-656	196-646	196-646
Distance between horizontal nose and table surface	mm	20-480	20-470	20-470
Distance between spindle axis and arm surface	mm	200	200	200
Spindle speed range	r.p.m	12 steps 60-1750 (V) 12 steps 60-1800 (H)	12 steps 60-1750 (V) 12 steps 60-1800 (H)	12 steps 60-1750 (V) 12 steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80	3/18/80	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)	5.5 (H) 4 (V)	5.5 (H) 4 (V)
AC servo feed motor torque	N.m	10	10	10
Overall size	mm	1800×2100×2000	2245×2100×2000	2245×2100×2000
Net weight	kg	2685	2750	2800

---
