Welcome to visit

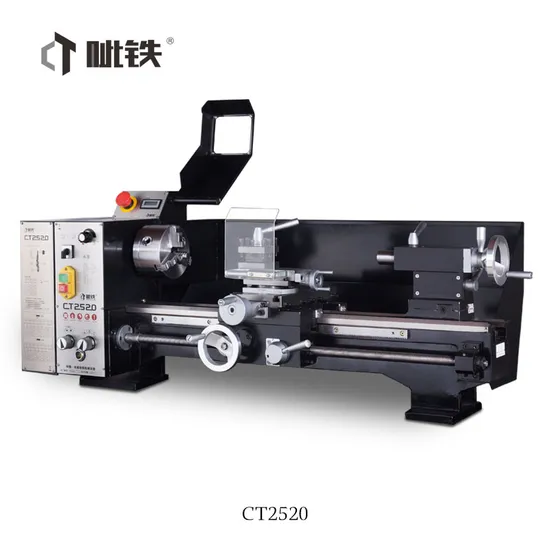

Manual Lathes Machine Lathe Customization Manual Lathe Torno

US$1,394.00
1-2 Sets
US$1,364.00
3-4 Sets
US$1,314.00
5+ Sets

Basic Info.

Model NO.
CT2520
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, ISO 9001, ISO9000 2020
Condition
New
Feature
High Precision
Produce Capacity
1000
MOQ
1PC
Transport Package
Standard Wooden Packing
Specification
1200*620*1000mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
1000

Packaging & Delivery

Package Size
120.00cm * 62.00cm * 100.00cm
Package Gross Weight
160.000kg

Product Description

Max. swing over bed 250mm
Max. swing over tool post 150mm
Max.machining length 550mm
Spindle taper MT4
Spindle bore 26mm
Max. travel of tail-stock sleeve 70mm
Taper of tail-stock MT2
Middle carriage travel 120mm
Small carriage travel 70mm
Metric thread 0.2-4mm
Inch thread 8-5.6T.P.I
Longitudinal feed 0.07-0.4mm/r
Spindle speed range 50-2500r/min
Motor power 1.1KW
Net weight 140KG
Dimensions (L*W*H) 1100*600*450mm
Packing Size 1200*620*1000mm
