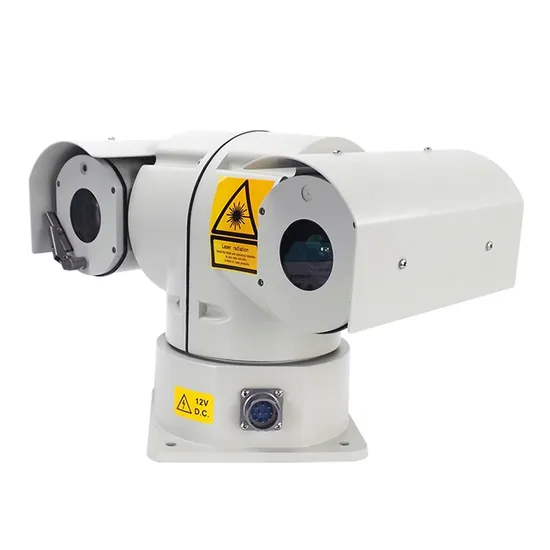

500m Night Vision 33X 2.0MP HD Network Laser PTZ IP Camera

Product Description

33x 2.0MP Camera 300m-500m Night Vision Laser HD IP PTZ CCTV Camera
Functions:
1. PTZintegrates megapixels FULL HDTV Full HD network camera , for applications requiring high resolution, auto focus, excellent color performance and image full frame rate and it can enrich image detail illumination on some poor video surveillance applications, it can be applied for the city, the airport, the financial industry, video conferencing, digital court security monitoring areas with low stream high-definition video images and the overall solution.
2. Performance with HDTV.Support SXGA(1280x1024,30fps)/(1920x1080P/30P)aspect ratio is 5:4 or HDTV 720P/25P+576P/25P,aspect ratio is 16:9 HDTV 720P/30P+480P/30P dual stream format resolution,it can fully output H.264 Main Profile level and M-JPEG video streaming.
3. Integrated with best low stream ,compressed 720P/25P video in the 2Mbps bit video resolution of up to 727 TV lines;It compressed SXGA video in the 3Mbps bit video resolution of up to 800TV lines;It compressed 1920x1080P/30P video in the 4Mbps bit video resolution of up to 1000 TV lines.
Support IE browser
Features:
1. Importing US laser arrays,eliminating laser speckle,improving homogenization spot effect.
2. Laser consumption is 2W,laser beam angle 0.6°-30,it is available for far and near version surveillance.
3. Infra red laser night version range more than 400m
Network Parameter:

Video compression standard	H.264 Main Profile @ Level 4.1 / Motion JPEG
The highest resolution	SXGA(1280x1024,30fps)HD/720p(1280x720,25fps)+Full D1(720x576,25fps)
	1920x1080,30fps,1280x1024,30fps,HD/720p(1280x720,30fps)+Full D1(720x480,30fps),720P(H.264)+720P(MJPEG)
	PAL/NTSC
Horizontal resolution	>700TVL(1280x720 pixels)/>900TVL(1920x1080 pixels)
Audio compression	16kHz 16bit 32kbps MP2
Audio input and output	External active microphone or line input,line output
Supported protocols	IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP, SOCKS
Application program interface	Support software integrated API,including the SDK and the VMP platform video management center
Audio input/output(Optional)	1 audio input,1 audio output
Software control	IE,the client,the management center platform
Alarm trigger	Video motion detection,external sensor trigger
Alarm input and output	1 switch input,1 relay output switch

PTZ Parameter:

Model	SHJ-HD-TL
Pan range	360°continuously rotation
Pan preset speed	100°/s
Tilt preset speed	80°/s
Pan control speed	0.1°-60°/s
Tilt control speed	0.1°-40°/s
Tilt range	90°~ -90°
Preset positions	128
Temperature and humidity	-35°C-55°C,humidity less than 90%
Power supply	AC24V/3A,DC12V/5A
IP grade	IP66(Outdoor)TVS 4000V lightning,anti-surge protection
Installing ways	Different installing ways accordingly
Weight	6KG

Mesures and Diagram:(mm)

---
