China FRP Ald 38*38*38/50*50*50mm Customized Grating Fiberglass Mesh Machine Hot Sale

Product Description

Product Description

No.	Mesh Size (mm)	Panel Size (mm)	Panel Size (mm)
1	38*38	1220*3660*38	38.5-41
2	38*38	1220*3660*30	30.5-32
3	38*38	1220*3660*25	25.5-27
4	50*50	1220*3660*50	50.5-52
5	38*38	1000*4038*38	38.5-41
6	38*38	1000*4038*25	25.5-27

Remarks: the size can be customized according to customer requirements

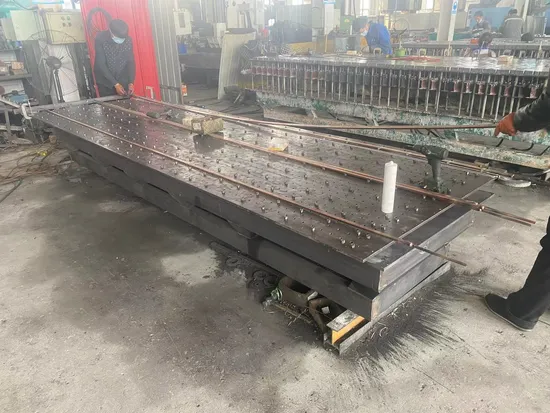

1220 * 4920 * 38mm FRP grating mold is a non-standard model of FRP molded grating machine,as the recent
car gradually into the homes of ordinary people, around the car and car becuty shopin the ascendant, FRP grating
in the field of caravans to promote, making the glass car grile markeireally formed, expanding the FRP grating
has a new field. We have designed this specification inaccordance with this form of equipment, because you
can also in the direction of the length of theproduction of 3660 and 4000 grid plate, so the mold once listed,
immediately received the majorityot gjlass steel girille manufacturers of all ages. The following technical informaitionon the equipmen described below:
First the mold foming surface size: 1220 * 4920 * 40mm, at the same times the production ofarbitrary specifications of
the card arile. For example: 1220 * 3660mm or 1220 * 4000mm boardcan be produced.Second, the module specifications:
the upper end: 311 * 3l.mm, the lower end: 33.1 * 33.imm, themodule height of 40 mm. The size of the entire module
deviation is not greater than 0.08 mm. Ofcourse, we can also adjust the size of the module according to customer requirements, hereomitted 50 words, you know!
Third, the module material and technoloay: the module selection of hiah-quality #45steel. aftesawing cutting, grinding machine
flat head, miling machine open oblique, grinding machineleveling, driling, sanding chamfering, cloth wheel polishing, plating
hard chrome and other 8processes linto, which is the most attention to the module plating, to strictly accept the seventy-nineforty-nine minutes of plating, in the module surface to form 0.05-0.07 mm coating. The wholeprocess aives us an exclusive tour of another version of a steel art tour.Fourth, the product size: Center distance: 38. * 38.imm, height: 38 mm, product ribs thickness.the next 5mm' 7 mm. Products in the square meter in the 19.5 kg, material consumption, closeoorcelain redl.
Fifth, the color: According to customer requirements for FRP grating equipment the generalfactony color for the qeneral-purpose motor aray.Six roof thickness: 14mm, material S45c steel, roof surface miling machine trim, large-scalesanding machine high-speed polishing. Seven, bottom plate thickness: 14mm, material Q235Alarge gantry miling machine planning. 8, the trip part: the stroke of the equipment is the centralpart of the movement of the mold, we use 25 mm thick $45c steel plate, after miling machineprecision machining to ensure that the size of strict fit, combined with eight 45 mm square steeas the support, to ensure that the whole Stroke advance and retreat smooth operation. Cylindesize diameter 1l0mm, lenath 350mm, cylinder pillow selection of wide Q235A forged steel, superpressure.
Nine, mold overall appearance: wide 1300 * long 5730 * hiah 850 mm, The height of the mold canbe adiusted accordina to the arile production process selected by the customer. For examplechoose a sinale pul the yarn customers, our mold height is generally not more than 750 mm.
