60V 72V 100ah 200ah 150ah 170ah 190ah E-Bike Battery Pack Customization Lithium-Ion Battery for Electric Tricycles Electric Scooters

US$850.00-1,800.00 2 Pieces (MOQ)

Basic Info.

Rated Capacity
Optional
Working Life
Optional
Certification
CE, Optional
Color
Black
Terminal
Optional
Application
Boats, Electric Wheelchairs, Solar Energy Storage
Cycle Life
4000 Cycles
Operating Temperature(ºC)
-20~55
Cathode Materials
LiFePO4/Nmc
Voltage
64V/76.8V
Battery Cell
a- Grade
Protection
Built-in BMS
Transport Package
Ply-Wood Case
Specification
Customized
Trademark
OEM/ODM
Origin
China
HS Code
85079090
Production Capacity
50000units/Per Year

Product Description

CTS ev battery pack lithium ion 60V 72V 100ah 200ah lifepo4 battery for ev boat electric car vehiclesDear customer, if you are interested in our battery pack , please Send inquiry to us , our engineering team will provide you best battery solution and quotation !!!
LIFePo4 Power Battery

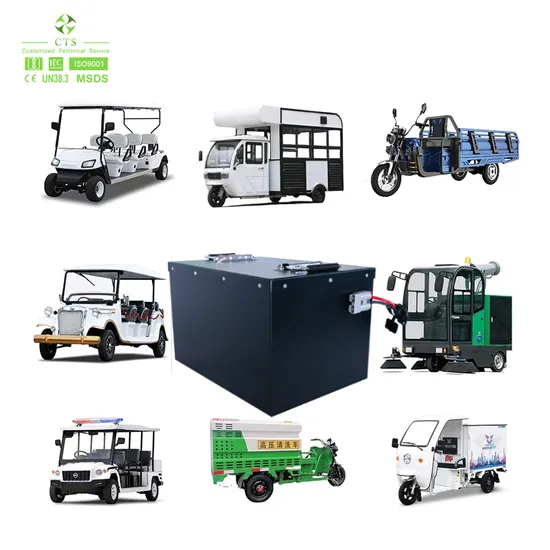

Application: TukTuk, Motorcycle, Scooter, Ebike, E-rickshaw, Tricycle and Other Electric Vehicles
1, Grade A brand new 2C high power Lithium Iron LiFePo4 Battery cell;
2. High power, big current BMS;
3, Top quality metal case and Ip67;
4, Support customized charge and discharge port, several size option
MODELCTS64105CTS76105
Cell Type - ChemistryPrismatic- LiFePO4Prismatic- LiFePO4
Rated Capacity105105Ah
Rated Voltage64v76.8V
Energy6720wh9064wh
Resistance30mΩ30mΩ
Self Discharge<3% per month<3% per month
Dimensions (L x W x H)L550*W420*H240mm(Can make it smaller if you want)L750*W520*H240mm(Can make it smaller if you want)
Weight55kg65Kg
Enclosure ProtectionIP67 steel caseIP67 steel case
Discharge Cut-off Voltage50v50V
Continuous Discharging Current105A105A
Peak Discharge Current300A for 10S300A for 10S
Recommended Discharge Current105A105A
Charging Limited Voltage73V87.6V
Max Charging Current100A 100A
Recommended Charge Current50A 50A
Charge Temperature Range0~50ºC0~50ºC
Discharge Temperature Range-20~60ºC-20~60ºC
Recommended Operating Temperature15~35ºC15~35ºC
Available on requestSize, C rate, Communication protocolSize, C rate, Communication protocol
FUNCTION CUSTOMIZE
1. Build in BMS
2. WiFi and Bluetooth
3. Higher power: 1-3C
4. GPS positioning system
5. Remote control system
6. Using environments(60ºCto -20ºC)
7. Explosion-proof
8. Multi communication protocolFrom the battery cell to the battery pack, CTS controls every production link irstrict accordance with the ISO 9001 standard, arranges quality inspectors tocheck the process details to ensure the safety of the battery, and presents the best products to every customer.
