US$2.23
5,000-9,999 Meters
US$1.25
10,000-19,999 Meters
Basic Info.
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, ETL
Center Conductor
Solid Bare Copper/Copper Clad Steel
Dielectric
Foam PE/Solid PE
Shield
Al Foil/Bonded Al Foil
Braiding Wire Material
Al/Bc/Tinned Copper
Jacket Color
Black\White\Per Customers′ Special Requirement
Outer Packing
Carton Box, Pull out Box, Pallet
Place of Origin
Zhejiang, China (Mainland)
Transport Package
Wooden Reel, Plastic Reel, or Paper Reel
Specification
100m/roll, 200m/roll, 305m/roll,
Production Capacity
18000kilometer/Month
Packaging & Delivery
Package Size
35.00cm * 35.00cm * 20.00cm
Package Gross Weight
12.000kg
Product Description

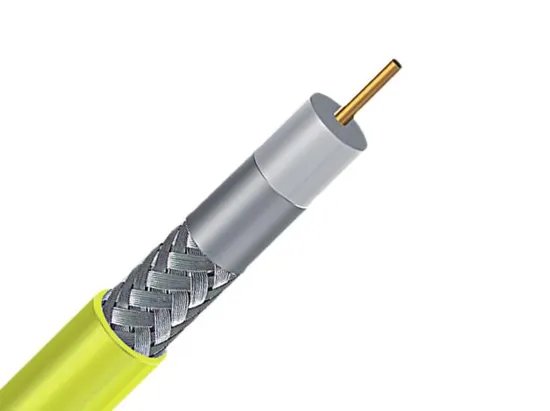

Coaxial Cable RG59
1. Construction
Basic Construction
|
| STANDARD SHIELD
|
CONDUCTOR
| MATERIAL
| BC/CCS
|
Nom.Dia.
| 20AWG
|
DIELECTRIC
| MATERIAL
| Foam PE
|
Nom.Dia.
| 3.66mm
|
SHIELD
| MATERIAL
| AL Foil+AL Braiding
|
COVERAGE
| 40%-95%
|
JACKET
| MATERIAL
| PVC/PE
|
Nom.Thick.
| 0.80mm
|
Nom.Dia.
| 6.10mm
|
2. Product pictures
3. Packing details
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request
4 Certificate
5 Our company
FAQ
What kind of cable do you produce?
We specialize in producing lan cable, coaxial cable, telephone cable, speaker cable and so on.
What is your MOQ?
Usually, the MOQ is 10km.
What is your delivery time?
Usually, our delivery time is 15 days after received deposit. It is base on the quantity of the order.
What is your payment term?
Usually, we accept T/T.Other payment, we can negotiate with customers.
What is your manner of packing?
Inner Packing:
100m/roll, 200m/roll,300m/roll,100yards/roll;200yards/roll;300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum
Outer Packing:
Wooden drum, carton box, pull out box
Or according to client's request.
Can you customize cables basing on customer's sample?
Yes, of course.
>>
