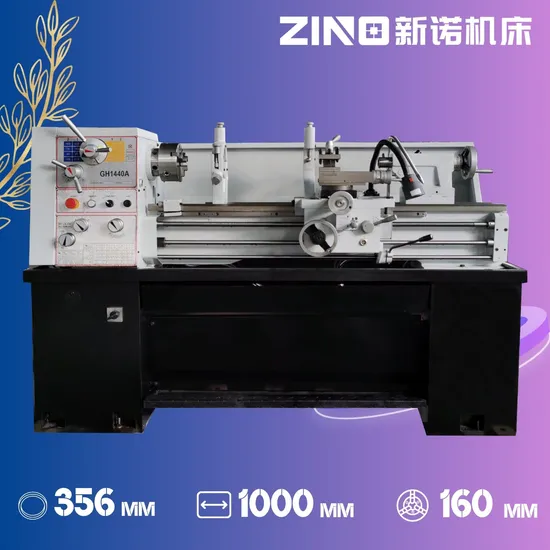

Gh1440A / Cq6236f Manual Lathe for Metal Cutting with CE

US$3,400.00
1-5 SET
US$3,300.00
6+ SET

Basic Info.

Model NO.
Gh1440A
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed
356mm
Spindle Seed
(16steps) 45-1800rpm
Max. Length of Workpiece
1000mm
Motor Power
1.5/2.4kw
Spindle Bore
Φ38mm
Tailstock
Manual Tailstock
3-Jaw Chuck
Self-Centering Chuck/ 160mm
Voltage
380V, 50Hz, 3pH
4-Jaw Chuck
Independent Chuck/ 200mm
Width of Bed
206mm
Transport Package
Standard Wooden Case
Specification
1940x750x1500mm
Trademark
ZINO
Origin
Jiangsu Province
HS Code
8458990000
Production Capacity
200 Pieces / Year

Product Description


Stephen Zhang / Deputy General Manager

Factory: JIANGSU ZINO MACHINERY MANUFACTURING CO., LTD
Address: No.36-1, Meihua Road, Xuyi Industry Park, Huai'an City, Jiangsu Province, China
