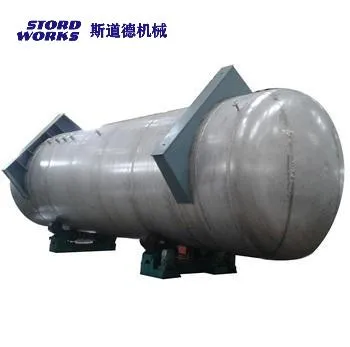

Stordworks Stainless/Carbon Steel Reactor 30-80000L Can Be Divided Into Magnetic Seal

Product Description

Product Description
Reaction vessel such as reactor, oxidation reactor, decomposition reactor, polymerization reactor, crystallization reactor and etc. is the pressure vessel which is mainly used to complete physical or chemical reaction. Our company can manufacture large reactors with volume of 120m3, pressure of 10MPA and single weight of 100T. Reactor can be heated by electricity, steam, conduction oil, infrared ray, etc. and be cooled by jacket, outside cooling coiler and inside cooling coiler with 0-1000 r/min frequency control. Stirring blades can be any optional form as per customer's requirements. Construction material can be carbon steel, stainless steel, titanium, aluminum, dual-phase steel and composite materials.
The sealing form of reactor can be divided into packing seal, mechanical seal and magnetic seal.
The manufacturing structure of reactor can be divided into open flat cover reactor, open buti welding flanged reactor and closed reactor, each kind of reactor has its application scope, advantages and disadvantages.
Product Parameters

Specification(L)	Nominal Diameter (Φmm)	Nominal Diameter of Jacket (Φmm)	Motor Power(kw)	Model of Gearbox	Stirring Speed(r.p.m)
30	400	500	0.6	BLD0.6-1	60-100
50	500	600	0.8	BLD0.8-1	60-100
100	550	650	1.1	BLD1.1-1	60-100
150	600	700	2.2	BLD2.2-2	60-100
500	900	1000	3	BLD3-2	60-100
800	1100	1200	4	BLD4-2	60-100
1000	1200	1300	4	BLD4-3	60-100
2000	1400	1500	5.5	BLD5.5-3	60-100
3500	1400	1500	7.5	BLD7.5-4	60-100
18000	2000	2100	15	BLD15-5	60-100
32000	3000	3200	37	BLD37-56A	35-39
80000	4000	4200	55	BLD55-56A	35-39

Packaging & Shipping
1.Carefully check the quantity and quality of equipment before packing.
2.Good packed by plastic wrap.
3.Iron Frame, Suitable for land transport and sea freight.
4.Fittings and spare parts are packed in wooden pallet.
5.Add labels and shipping mark.
Fields of application
This equipment is used in the process of hydrolysis, neutralization, crystallization,distillation and evaporation in
pharmaceutical, chemical, food, light and otherindustries. It can use SS304, SS316L, Titanium, Hastelloy, PTFE lined and other materials to manufacture. Several mixing types are available, such as anchor, frame and oar, etc.
Cycloidal pinwheel reducer, variable-speed reducer and others could be applied in the rotating mechanism. The
sealing device can use machines; Sleeve, semi-tube and coil pipe structure can be used in heating and cooling. There
are several heating modes, such as steam, electric heating, heat conduction oil, etc. In order to meet different requirements of acid-and alkali-proof, high temperature resistance, wear resistance, corrosion resistance and others under different working environments, reaction kettles can be designed and manufactured based on clients' requests.
Certifications
Our company has successively obtained the national standard pressure vessel manufacturing license, the pressure vessel design certificate, the ISO9001 certificate, the ISO14001 certificate, and obtained the ASME,CE,DNV, TR-620 certificates successively by cooperating with many international professional testing institutions such as BV, TUV, DNV, SGS.
