DTG series portable intelligent dry block temperature calibrator, simple operation, light and easy to carry, accurate temperature control,suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from 50° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field,stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals,food, electricity, pharmaceuticals and other industries.
Functional characteristics
Operation interface
Product Paramenters

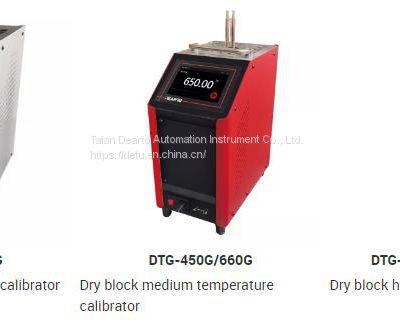

Medium temperature portable intelligent dry block furnace
|
Model
| DTG-300G
| DTG-450G
| DTG-660G
|
Temperature range
| 50℃~300℃
| 50℃~450℃
| 50℃~660℃
|
Accuracy of sensor
| ± 0.4%·t;Support deviation correction
|
Control style
| Touch screen
|
Display resolution
| 0.01℃
|
Radial uniformity
| ≤±0.2℃
|
Axial uniformity
| Within 30mm from the bottom of the well ≤0.5℃(50℃~300℃)
|
Within 30mm from the bottom of the well ≤1.0℃(300℃~660℃)
|
Temperature fluctuation
| ≤±0.15℃
|
Well depth (mm)
| 160
|
Standard hole diameter(mm)
| φ4.5,φ6.5,φ8,φ10
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
|
Dimensions (mm)
| 285(L) x170(W) x335(H)
|
P
| 800W
| 1200W
|
Power supply
| AC 110V/220V,60Hz/50Hz
|
High temperature portable intelligent dry block furnace
|
Model
| DTG-800G
| DTG-1000G
| DTG-1200G
|
Temperature range
| 300℃~800℃
| 300℃~1000℃
| 300℃~1200℃
|
Control style
| Touch screen
|
Accuracy of sensor
| ± 0.4%·t;Support deviation correction
|
Display resolution
| 0.01℃
|
Radial uniformity
| ≤±0.2℃
|
Axial uniformity
| Within 30mm from the bottom of the well ≤1.0℃
|
Temperature fluctuation
| ≤±0.2℃
|
Standard hole diameter(mm)
| φ6.5,φ12
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support
customization)
|
Well depth (mm)
| 200
|
Dimensions(mm)
| 310×165×360
|
P
| 1800W
|
Power supply
| AC 110V/220V,60Hz/50Hz
|
