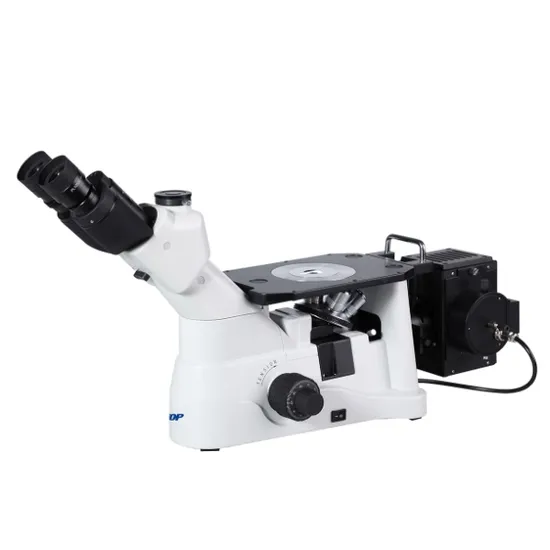

Industry Laboratory Instrument Trinocular Inverted Metallurgical Microscope

Product Description

XD30M inverted metallographic microscope provides the best image quality and stable and reliable mechanical structure, easy to operate, complete accessories, widely used in teaching and research metallographic analysis and factory laboratory material testing.
Provide superior image quality and stable and reliable mechanical structure, easy to operate, complete accessories, widely used in teaching and research metallographic analysis and factory laboratory material testing.
Eyepiece and objective
High eye point, ultra-wide field eyepiece, PL10x/22mm, provides a wider and flatter observation space and can be equipped with various kinds of micrometers for measurement, infinite flat field achromatic ultra-long working distance professional metallographic objective, no cover glass design.
Observation tube
Hinged triocular, adjustable viewing degree, 45° tilt, can be photographed, the observation image acquisition and saving, the configuration of computer and professional software to achieve image analysis.
Focusing mechanism
Low hand position coarse-tuning coaxial focusing mechanism, with coarse-adjusting tightness adjustment device, coarse-adjusting stroke 38mm per revolution, fine tuning accuracy 0.002mm.
Reflective Kola illuminator with variable stop and center adjustable field stop, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protect and extend the service life of halogen lamp.
The XD30M inverted metallographic microscope stage can be equipped with coaxial low hand adjustable moving ruler and stage extension plate to expand the application space and meet the use of different needs of customers.

Optical system	Infinite distance chromatic aberration correction optical system
Viewing cylinder	Hinged triocular head, 45° tilt, pupil distance adjustment range: 54-75mm, unilateral visibility adjustment ±5 diopter ratio: binocular 100%, binocular: triocular =80%:20%
Eyepiece	High point large field of view flat field eyepiece PL10X22mm
	High eye point Large Field of View flat field eyepiece PL15X/16mm
Objective lens	Infinite long working anomaly field achromatic objective: LMPL5X /0.15 /WD10.8 LMPL10X/0.3 /WD10 LMPL20X/0.45 /WD4
	Infinitesimally long working anomaly field semi-offset metallurgical objective: LMPLFL50X/0.55 / WD7.8LMPLFL100X /0.80 /WD2.1
Converter	Five-hole converter
Focusing mechanism	Coarse fine adjustment coaxial, coarse adjustment per turn stroke: 38mm, fine adjustment per turn stroke: 0.2mm, focusing accuracy: 0.002mm, with elastic adjustment device
Stage	Fixed platform: dimensions 160X250mm
Work table plate	Metal stage (center hole Φ12)/Metal stage (center hole Φ25)/stage extension plate
Moving ruler	Low coaxial mechanical moving ruler, travel 120x78mm
Reflective lighting system	Reflection type Cora illuminator, with variable aperture light bar and center adjustable field of view light bar, adaptive 90V~240V wide voltage, 12V50W halogen lamp, center adjustable, continuous brightness adjustable
Polarizer	Polarizing mirror insert
	Polarizing mirror insert that can be rotated 360 degrees
Color filters	Φ32mm yellow/green/blue/neutral
Photography installation	Photographic socket (with PK bayonet), 3.2X photographic eyepiece
Camera unit	0.5X/1.0X/ C type camera socket

effect picture

---
