Hose Reel Irrigation System Big Rain Gun Traveling Irrigator System

Product Description

HOSE REEL IRRIGATION SYSTEM
PRODUCT INTRODUCTION The hose reel irrigation machine is composed of frame ,reel,PE tube,water turbine,gearbox and water carriage.Spray gun is mounted on a trolley chich is dragged by the hose driven by water turbine.So the machine actually is motivated by the water pressure.

Single spray gun and framed spray are two model of reel irrigation machine.
Single spray gun model is most popular machine in the market ,it features the longer spray distance,easy for operating and towable.The spray gun swing vertically and is made of aluminum alloy or stiffen plastic and can be used for over 10 years.

Framed spray is driven by lower water pressure.More used for irrigating fragile crops,prevent them from impacting by big droplets and prevent the runoff as well.The turbine is made of stainless steel and coved with high strength aluminum .The axle is sealed by mechanical way and features the excellent sealing and water resisting.The water outing of the turbine has adjustable plate to change speed flatly to assure smooth speed during withdrawing.
SPECIFICATION

Model	Pipe Dia (mm)	Pipe Length (m)	Max.Strip Length(m)	Water Flow (m3/h)	Nozzle Dia (mm)
50-150TX	50	150	2x180	7-16	11-14
65-220TX	65	220	2X260	13-32	14-22
65-250TX	65	250	2X290	13-32	14-22
65-350TX	65	340	2X380	13-28	14-22
75-300TX	75	400	2X335	13-38	14-26
75-350TX	75	350	2X390	13-38	14-22
75-400TX	75	250	2X435	13-30	14-20
90-250TX	90	250	2X300	17-65	16-30
90-300TX	90	300	2X350	17-65	16-30
110-400TX	110	400	2x435	17-90	18-40

Boom Parameters:

Boom length	26m
Covering width	36m
Water flow	13-60m3/h
Pressure	0.3-1.00Mpa
Nozzle dia.	4.4-7.5mm
Working pressure	0.10-0.20Mpa
Sprinkling range	1.0-5.5m
Rainfall	8-50mm

The boom adopts stainless steel pipe, length is 26m.
Can use the AS26m boom cantilever type if the plant request small rainfall.
With the advantage of lower pressure, smaller water-drop, higher water distribution uniformity, small influence for wind.
MAIN PARTS 1.Water Turbine
Water turbine is the heart of the whole machine parts, it is the power-drive system of machine, also can regulate water flow, ensure PE tube recovery speed uniform.
2. Oriented device
It can effectively guarantee the reliability of the reversing, can ensure PE pipe safely and orderly arrangement in the winch. And guide walk uniform, no card hysteresis, completely solved the problem of oriented mechanism reversing difficult, improve the accuracy of speed adjustment.
3. Gear box
Multi-functional gear box is the control system of whole machine, this system can realize the clutch, brake, variable speed, fast and safe recovery of transmission system.
4. Frame and winch
It can rotate 360°, make the sprinkler car to work on different orientation field, reduce the machine movement frequency, and increase the reclamation index.
5. PE pipe
Our PE pipe is made of special polyethylene material, of which technical indicators have reached the international advanced level. By durability test in different country's climatic condition, its expected service life is more than 15 years.
6. Automatic speed governing device
By a complete set of connecting rod structure, it can adjust the opening of casing tongue of water turbine, achieving infinitely variable speed of water turbine, ensuring PE pipe to maintain a constant speed among different layers.
FEATHERS 1.Irrigation machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.
2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.
3.High Efficiency and Large Irrigation Area. The Sprinkler can spray water in all directions.
4.Good irrigation quality and uniformity can be up to 85% above.
5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.

THE WALKING SKETCH OF HOSE REEL IRRIGATION SYSTEM

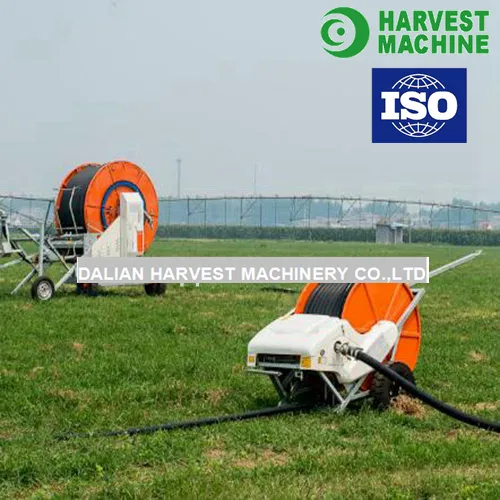

PHOTOS OF IRRIGATION SYSTEM
COMPANY INTRODUCTION
Dalian Harvest Machinery Co., Ltd is a leading manufacturer in China for irrigation equipments.
The main products of our company include center pivot irrigation system, fixed pivot irrigation system, towable center pivot irrigation system, lateral move irrigation system and small size center pivot irrigation system, and water hose reel irrigation machine.
We strives to provide first-class quality products and friendly service with rich experience of finish machining.
"Good Quality, Reasonable Price, Best Service" is our goal. We warmly and sincerely welcome customers all over the world to visit our factory and look forward to establishing long term cooperation and solid relationship to make mutual benefit.
For more information, please feel free to contact us.
PACKAGE AND DELIVERY
Spare parts packaged by the standard exporting wooden box.
20", 40", 40"HQ, 40" open top, all available.
SERVICE
1. Professional and quick response to your questions within 24 hours.
2. We will communicate with our production dept. and keep you updated about production progress in time.
3. Customized manufacture available for you.
4. Fast delievery to save your time.
5. Good after sale service will eliminate your worry.
6. Long guarantee period of the quality will reduce your cost and trouble.
7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.
WARRANTY
1, 1 year concerning electric equipment
2, 10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
3, 20 years concerning the galvanized equipment against corrosion
4, 3 years for tires and rims
PAYMENT
Wire transfer: 30% advance by T/T, 70% balance by T/T before shipment.
Letter of credit: by irrevocable letter of credit at sight.
Western union: it is a fast and safe way.
TRADE TERM
We can do FOB, C&F and CIF for your choice.
