SZLH-420 Ring die Pellet Machine

Product Description

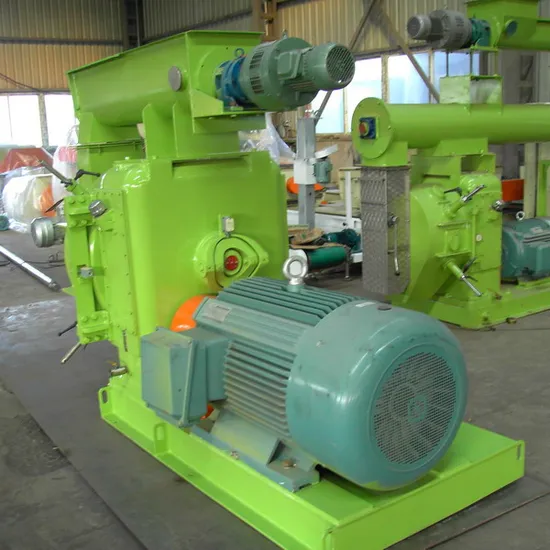

SZLH pellet machine
Product Description
Introduction:
It is one ring mould pellet mill which is suitable for making oil cake pellet for animal feedstuff, which could be granule for the fish, chicken, animal and so on. It is also suitable for making the biomass, sawdust pellet, rice husk pellet.
Advertage:
(1) It can be equipped with Automatic Adjustment System which can control the conditioner to stable work.
(2)Main transmission is high definition gear driving, ring die is easy to discharged, be fixed by hope;
(3)The bearing and oil seal in the main driven are imported and especially lubrication oil retum system is available to ensure reliable bearing lubrication;
(4)The feeding parts adopt electromagnetic adjustable speed motor or frequency conversion adjustable speed motor. It can make the motor work under best condition;
(5)Stainless steel doors and flume; stretching cutter has tick marks, easy to adjust, all safe overload devices and caution marks are completed.

Main data:

Model	Power of main motor (kw)	Power of feeding motor (kw)	Power of conditioner(kw)	Diameter of ring die(mm)	Capacity(kg/h)
SZLH320	37	1.1	2.2	320	200-300(sawdust ) 3000(feedstuff)
SZLH350	55	1.5	2.5	350	600-800(sawdust) 6000(feedstuff)
SZLH400	75	1.5	2.2	400	800-1000(sawdust) 8000(feedstuff)
SZLH420	110	1.5	5.5	420	1200-1500(sawdust) 14000(feedstuff)
SZLH508	132	1.5	5.5	508	1800-2000(sawdust) 15000(feedstuff)

More picture:
Parts:
Final production:
Package:
Our factory
Service process:
Customers buy the products sold by our company, is only the beginning of the relationship with our company, but also the beginning of the work of the after-sales service department, in the whole stage of customer use of the machine, all our after-sales service personnel with thoughtful, meticulous, enthusiastic and timely service, so that customers can easily use the equipment without worries. We can truly experience the convenience and value created by our products for customers.

---
