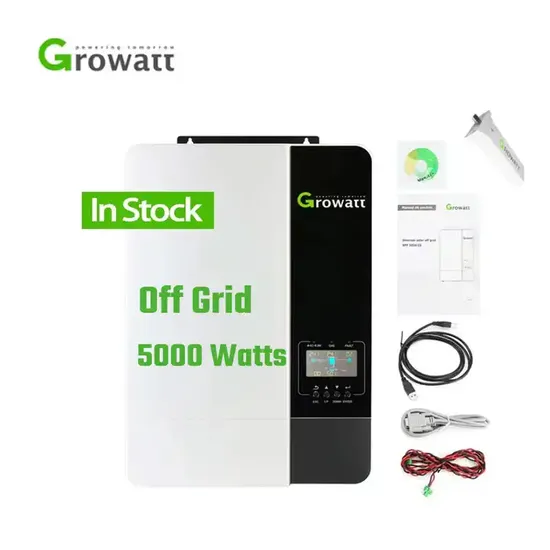

Growatt Home 5kw off Grid Hybrid Solar Power Inverter for Home

Product Description

Product Description
Product Parameters

SPF5000ES
Battery voltage	48VDC
INVERTER OUTPUT
RATED POWER	5000VA/ 5000W
Parallel Capability	Yes, 6 units
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR CHARGER
Maximum PV Array Power	5500W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Solar Charge Current	100A
Maximum Efficiency	97%
AC CHARGER
Charge Current	80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
PHYSICAL
Dimension (D/W/H) in mm	485/330/135
Net Weight (kgs)	12
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

Detailed Photos
Project Show
Company Profile
This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.
The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Features
1. Rated power 3.5KW to 5KW, power factor 1
2. MPPT ranges 120V~430V, 450Voc
3. High frequency inverter with small size and light weight
4. Pure sine wave AC output
5. Solar and utility grid can power loads at the same time
6. With CAN/RS485 for BMS communication
7. With the ability to work without battery
8. Parallel operation up to 6 unit (only with battery connected)
9. WIFI/ GPRS remote monitoring (optional)

---
