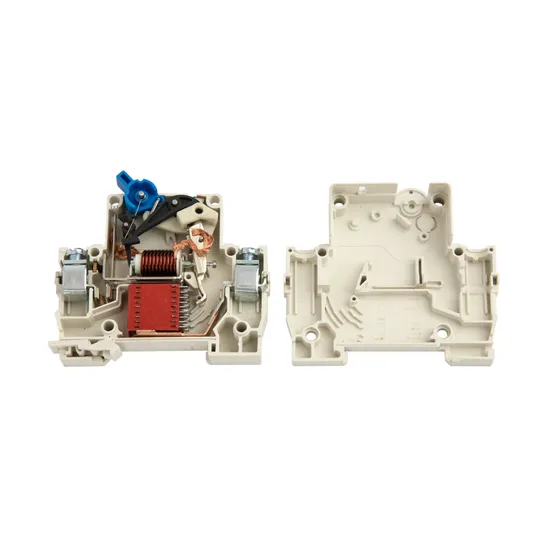

Siyan Leakage Circuit Breaker 220V 63A 1p+N Electrical Circuit Breaker

Product Description

MODEL	POLE	rated current(A)
DZ47LE-6-80A	1P+N	6-32A
	1P+N	40-63A bigger shell
	1P+N	80A bigger shell
	2P	6-32A
	2P	40-63A bigger shell
	2P	80A bigger shell
	3P	6-32A
	3P	40-63A bigger shell
	3P	80A bigger shell
	3P+N	6-32A
	3P+N	40-63A bigger shell
	3P+N	80A bigger shell
	4P	6-32A
	4P	40-63A bigger shell
	4P	80A bigger shell

Product Description MCB, Miniature Circuit Breaker meets the standard of IEC/BS EN60898-1, GB10963.1. It is an electrical safety device to protect an electrical circuit from damage caused by overcurrent and short current. Unlike a fuse which operates once and then must be replace, a miniature circuit breaker can be reset to resume normal operation. Timelec MCB is applicable in power distribution system of domestic, commercial and industrial buildings to protect and control circuits for overload and short-circuit protection. It can be combined with shunt tripping, under-voltage and overvoltage tripping, Auxiliary, Alarm and other electrical accessories.

Keep your electrical systems running smoothly with SIYAN premium MCBs! As a leading MCB manufacturer in the industry, we're committed to delivering top-notch circuit breakers that meet the highest standards of quality and reliability.

Rated current In	1A-63A
Pole number	1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated voltage Ue	AC 230/400V
Rated frequency	50/60Hz
Rated breaking capacity	6 KA
Running breaking capacity	6 KA
Rated shock withstand voltage	4 KV
Tripping characteristic	B . C . D
Mechanical life	10000 times
Electrical life	4000 times
Protection level	IP20
Fiducial temperature	30ºC
Ambient temperature	-5ºC to +40ºC
Storage temperature	-35ºC to +70ºC
Installation type	Modular structure, Rail mounted
Terminal wiring capability	25mm²
Tightening torque	2.0N*m 22In-Ibs
Mounting	35mm
