Self-Adhesive Preprinted Label Cutting Machine Paper Cutter with Photoelectricity Sensor

Product Description

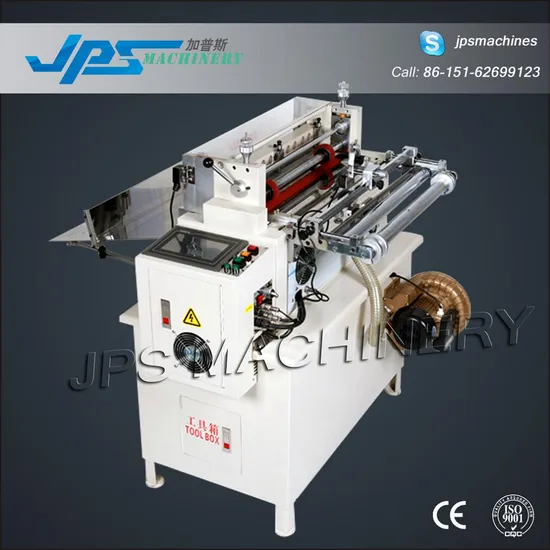

JPS-360D/500D Microcomputer Self-adhesive Preprinted Label Cutting Machine With Photoelectricity Marking Sensor + Suck Device
Application:
Sizing cutting for printed material,conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.
Feature:
This machine employs man-machine + PLC system equipped with pneumatic device, adding import photoelectricity eyes and suck device, to avoid accumulative error. marking and cutting , Which will improve cutting efficiency, High precision, low loss, easy operation.
Main technical parameters:

Model	JPS-360D
Voltage	220/380V
Power	1HP
N.W.	260kg
GW.	280kg
Cutting Length	0.1~9999.9mm
Cutting Width	1~360mm
Measurement	780x920x1070mm

Main functions of belt cutting machine:
1. Feed material and return material by pressing the button on touch screen
2. Automatic colour tracking , automatic cutting after tracking
3. Preset total cutting quantity
4. Preset cutting length
5. Preset cutting speed
6. Preset cut quantity each time ( applied for hot cutting)
7. Flash cutting quantity finished
8. Half cut-off with multi-cut
9. Full cut-off with one-cut
10. Five different cutting length can be set
11. Different cutting quantity and circulation time can be set
12. Return to ZERO
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
JPS-360D/500D Microcomputer Self-adhesive Preprinted Label Cutting Machine With Photoelectricity Marking Sensor + Suck Device ( Version )
JPS-360D/500D Microcomputer Self-adhesive Preprinted Label Cutting Machine With Photoelectricity Marking Sensor + Suck Device ( Configuration )
JPS-360D/500D Microcomputer Self-adhesive Preprinted Label Cutting Machine With Photoelectricity Marking Sensor + Suck Device ( Factory Show )
JPS-360D/500D Microcomputer Self-adhesive Preprinted Label Cutting Machine With Photoelectricity Marking Sensor + Suck Device ( Material Applied )
JPS-360D/500D Microcomputer Self-adhesive Preprinted Label Cutting Machine With Photoelectricity Marking Sensor + Suck Device ( Cutting Machine Series )
JPS-360D/500D Microcomputer Self-adhesive Preprinted Label Cutting Machine With Photoelectricity Marking Sensor + Suck Device ( Customer Show )

---
