20/30/35/50 Ton Truck Winch Cable Pulling Hydraulic Winch for Coal Mine Trailer

Product Description

Product Description

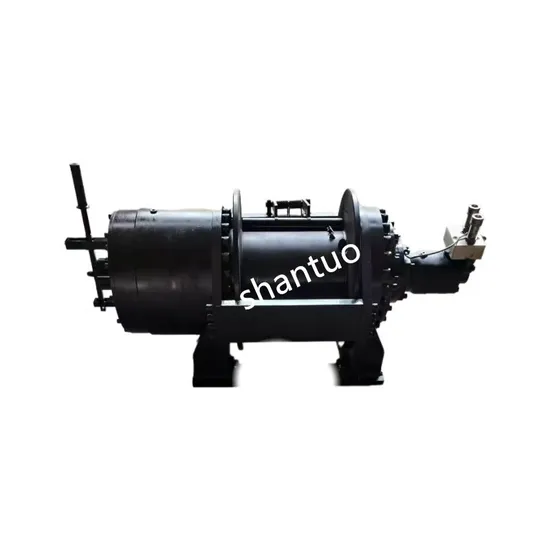

The hydraulic winch is composed of planetary reducer, low-speed high torque hydraulic motor, mechanical clutch, drum and other components.
The hydraulic energy obtained by the hydraulic motor through the hydraulic system is converted into mechanical energy, which is reduced and increased by the planetary reducer to generate a large torque on the drum. The purpose of dragging heavy objects is achieved by winding the steel wire rope on the drum.
Hydraulic winches are mainly used for self rescue, rescue, and towing of vehicles. They can also be used for road cleaning and rescue vehicles towing faulty vehicles, as well as for on-site towing of heavy objects in engineering installation, oilfield drilling and production, etc. The hydraulic winch can work with the host for a long time in the wild, characterized by compact structure, small volume, light weight, high tension, easy installation, and easy maintenance

Detailed Photos
Product Parameters

Technique Parameter
Numbers of layers	1	2	3	4
Pull force(KN)	350	290	240	200
Rope speed(m/min)	5	5.5	6.5	7.5
Rope capacity(M)	10	22	36	50
working pressure(Mpa)	20
System flow(L/min)	120
Ratio(i)	85

Certifications

Company Profile
Jining Shantuo Electromechanical Equipment company is a hydraulic equipment production entity integrating processing, manufacturing, assembly, sales and service. After years of development, our company has advanced production equipment, assembly equipment, testing equipment, a complete and scientific management system, and a technical team of more than 20 experienced hydraulic engineers. It mainly produces and sells hydraulic winches for pull and lift, hydraulic planetary rotary reducers, hydraulic motors, hydraulic brakes , etc. Operating various industrial and mining machinery, hydraulic pumps, hydraulic system components, engineering machinery equipment and accessories, etc.The company's products have passed ISO9001 quality management system certification, and have established long-term school-enterprise partnerships between many well-known domestic universities. Now has a number of utility model patents and invention patents, and the company's R&D team is constantly innovating in technology, product development and process improvement. Now the company's products have been widely used in mining machinery, construction machinery, agricultural machinery, petroleum and coal mining machinery, lifting and transportation machinery, ship deck machinery, garden environmental protection equipment, geological drilling equipment and other fields. We have been supplied to host manufacturers in various industries for a long time. It is sold in Southeast Asia, the Middle East, the United States, Russia, Indonesia, Malaysia, Britain, France, Italy, Brazil, Australia and other countries and regions.
Our Advantages
ST series hydraulic winches. The pulling force of the series products are 1.5T, 2.0T, 3T, 5T, 8T, 10T, 15T, 20T, 25T, 30T, etc. Its structure is mainly composed of hydraulic motor, hydraulic multi-disc brake, planetary gear reducer, drum, frame and so on. The selected hydraulic motor has the characteristics of high mechanical efficiency, high starting torque and low speed. According to the requirements of various working conditions, the distributor with different flow rate can also be designed and integrated directly on the motor oil distributor according to user's needs, such as with balance valve, overload valve, high-pressure shuttle valve, speed control reversing valve or other characteristics. Energy valves, brakes, planetary gear reducers, etc. are directly installed in the drum. The drum, supporting shaft and frame are designed according to mechanical requirements. The overall structure is simple and reasonable, and has sufficient strength and rigidity. Therefore, this series of winches are compact in structure, small in size, light in weight and beautiful in appearance. In performance, they have the characteristics of good safety, high efficiency, large starting torque, good stability at low speed, low noise and reliable operation.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.Q:My requirements are special, can the product be customized?A:Yes! We are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should provide all the needed information.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample ,but it need to be afford by customer.Q:What information should I provide to you before you could recommend a suitable winch and quote for me?A: 1 Intended application of the winch (including working condition)2 line pull (t or Kn)3 line speed (m/min)4 drum capacity/rope length(m)5 rope diameter(if have)6 hydraulic system pressure and pump flow (if have)7 other special requirements

---
